= The network shown below consists of two lossless transmission lines of lengths l_ 12 = 1/2 where 2 is the guide wavele

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

= The network shown below consists of two lossless transmission lines of lengths l_ 12 = 1/2 where 2 is the guide wavele

Post by answerhappygod »

The Network Shown Below Consists Of Two Lossless Transmission Lines Of Lengths L 12 1 2 Where 2 Is The Guide Wavele 1
The Network Shown Below Consists Of Two Lossless Transmission Lines Of Lengths L 12 1 2 Where 2 Is The Guide Wavele 1 (52.77 KiB) Viewed 21 times

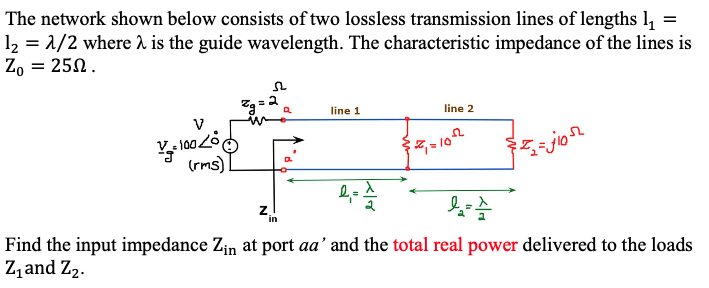

= The network shown below consists of two lossless transmission lines of lengths l_ 12 = 1/2 where 2 is the guide wavelength. The characteristic impedance of the lines is Zo = 2512. 2 22 D line 1 line 2 100_0 2,2167 2 jo. 100 (rms) e / - zin Find the input impedance Zin at port aa' and the total real power delivered to the loads Z and Zz.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
