In the following magnetic network circuit 1 is an infinitely long cylinder along the z-axis with radius a and total curr

Post by answerhappygod »

In The Following Magnetic Network Circuit 1 Is An Infinitely Long Cylinder Along The Z Axis With Radius A And Total Curr 1
In The Following Magnetic Network Circuit 1 Is An Infinitely Long Cylinder Along The Z Axis With Radius A And Total Curr 1 (67.68 KiB) Viewed 21 times

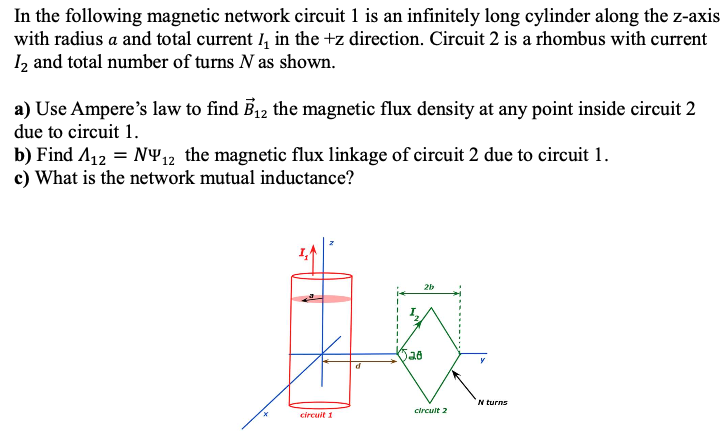

In the following magnetic network circuit 1 is an infinitely long cylinder along the z-axis with radius a and total current 1, in the +z direction. Circuit 2 is a rhombus with current 12 and total number of turns N as shown. a) Use Ampere's law to find B12 the magnetic flux density at any point inside circuit 2 due to circuit 1. b) Find 112 = NY 12 the magnetic flux linkage of circuit 2 due to circuit 1. c) What is the network mutual inductance? ਜੀ 25 ad N turns circult 2 circuit 1
