Q8) Consider three systems with the following input-output relationships: k even System 1: y[k] 0 k odd х ={*11 = System

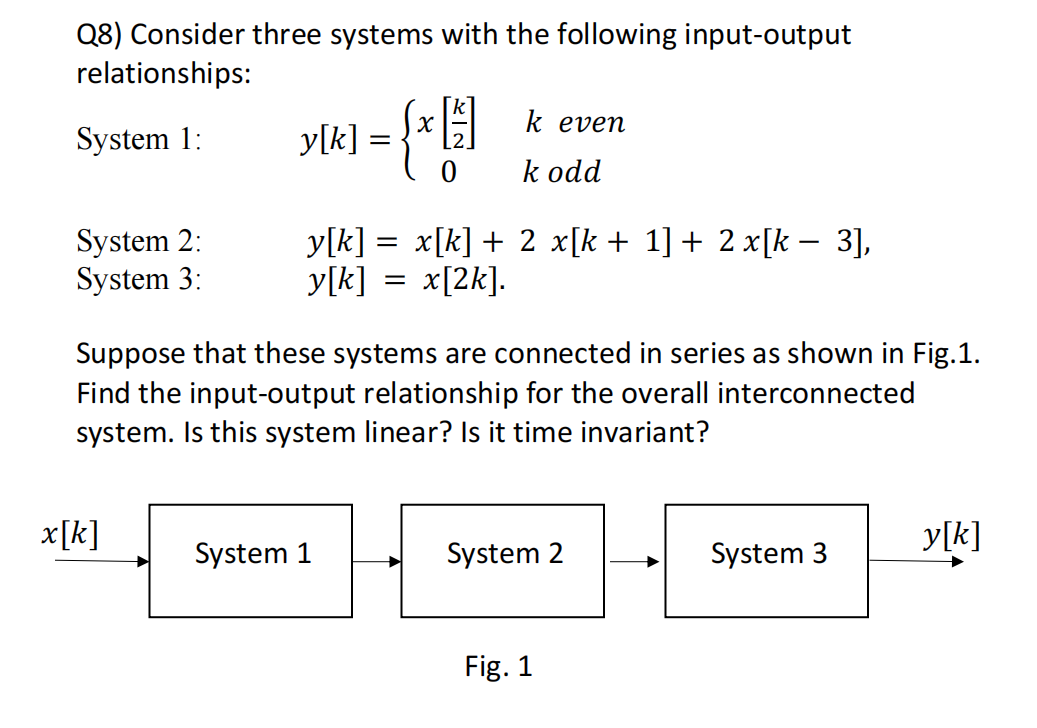

Q8) Consider three systems with the following input-output relationships: k even System 1: y[k] 0 k odd х ={*11 = System 2: System 3: y[k] = x[k] + 2 x[k + 1] + 2 x[k – 3], y[k] x[2k]. = Suppose that these systems are connected in series as shown in Fig.1. Find the input-output relationship for the overall interconnected system. Is this system linear? Is it time invariant? x[k] y[k] System 1 System 2 System 3 Fig. 1
