S. (15 points) For the differential amplifier circuit below, 1100, V = 0.7 V - (a) Find the collector current of the tra

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

S. (15 points) For the differential amplifier circuit below, 1100, V = 0.7 V - (a) Find the collector current of the tra

Post by answerhappygod »

S 15 Points For The Differential Amplifier Circuit Below 1100 V 0 7 V A Find The Collector Current Of The Tra 1
S 15 Points For The Differential Amplifier Circuit Below 1100 V 0 7 V A Find The Collector Current Of The Tra 1 (20.47 KiB) Viewed 41 times

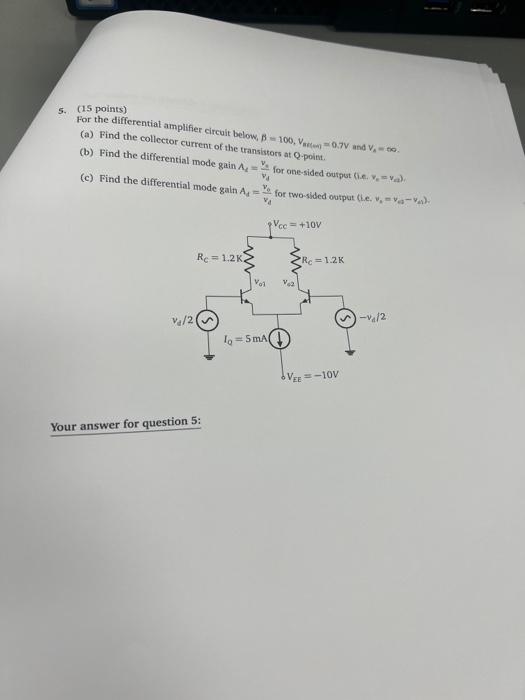

S. (15 points) For the differential amplifier circuit below, 1100, V = 0.7 V - (a) Find the collector current of the transistors at Q-point (b) Find the differential mode gain de for one-sided output leva, V (c) Find the differential mode gala A- for two-sided output (e. a.). Va Vcc = +10v RC = 1.2K Rc =1.2K Vo V V/2 -va12 1. = 5mA VER = -10V Your answer for question 5:
