Consider the feedback block diagram where \(K=5V) and \(K_1=0.051). Determine response y(t) due to unit step disturbance
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Consider the feedback block diagram where \(K=5V) and \(K_1=0.051). Determine response y(t) due to unit step disturbance

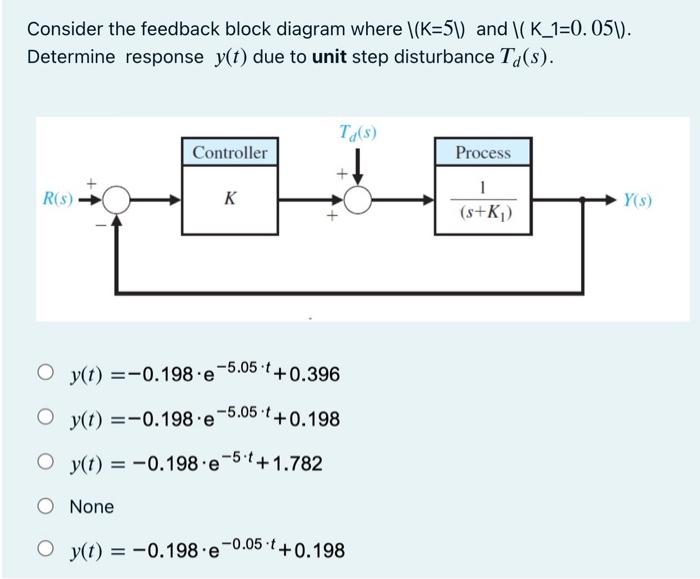

Consider the feedback block diagram where \(K=5V) and \(K_1=0.051). Determine response y(t) due to unit step disturbance Td(s). Ta(s) Controller Process R(S) K 1 (s+K) Y(s) O y(t) =-0.198.e-5.05 + +0.396 O y(t) =-0.198.e-5.05.1 +0.198 O y(t) = -0.198.e-5+1.782 O None O y(t) = -0.198.e-0.05.t +0.198
