6. (10 points) For the differential amplifier circuit below, B = 80, VpEcon) = 0.7V and R. = 100kn. Find the CMRR in dB.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

6. (10 points) For the differential amplifier circuit below, B = 80, VpEcon) = 0.7V and R. = 100kn. Find the CMRR in dB.

Post by answerhappygod »

6 10 Points For The Differential Amplifier Circuit Below B 80 Vpecon 0 7v And R 100kn Find The Cmrr In Db 1
6 10 Points For The Differential Amplifier Circuit Below B 80 Vpecon 0 7v And R 100kn Find The Cmrr In Db 1 (20.23 KiB) Viewed 19 times

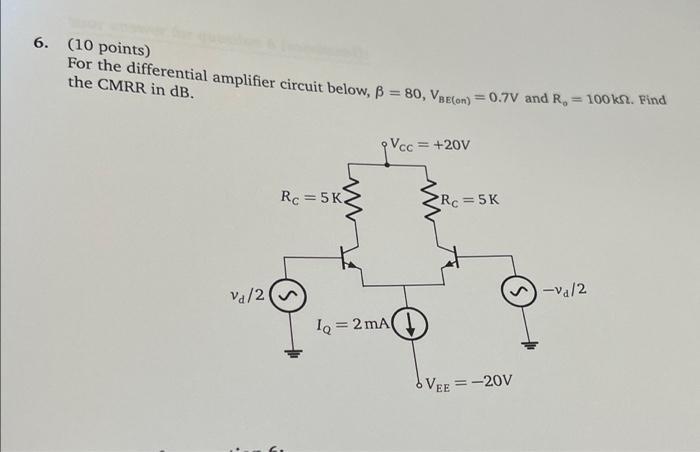

6. (10 points) For the differential amplifier circuit below, B = 80, VpEcon) = 0.7V and R. = 100kn. Find the CMRR in dB. 9 Vcc = +20V Rc = 5K Rc=5K = va/2 -va/2 IQ = 2 mA Vee = -20V EE G
