4. (15 points) For the amplifier given below, the midband gain is given as 20 dB. The transistor pa- 100 and VA = 0. The

[answerhappygod]

4 15 Points For The Amplifier Given Below The Midband Gain Is Given As 20 Db The Transistor Pa 100 And Va 0 The 1 (30.87 KiB) Viewed 13 times

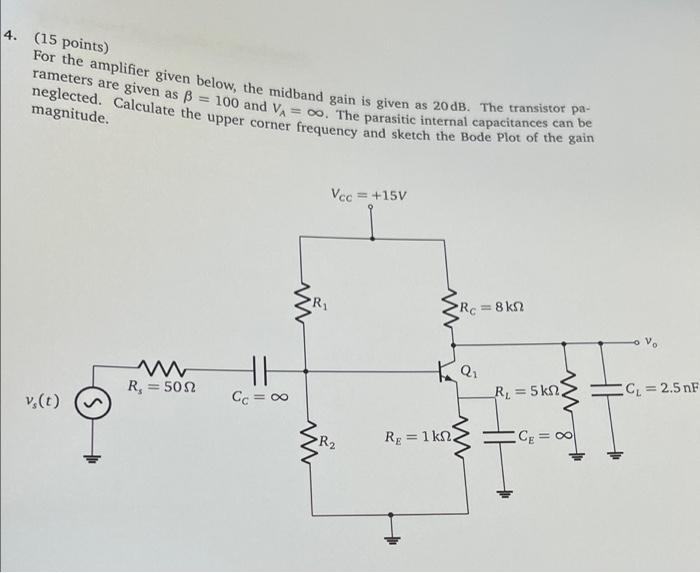

4. (15 points) For the amplifier given below, the midband gain is given as 20 dB. The transistor pa- 100 and VA = 0. The parasitic internal capacitances can be neglected. Calculate the upper corner frequency and sketch the Bode Plot of the gain magnitude. rameters are given as B Vcc = +15V R RC = 8k2 HE R = 5012 Сс OO RL=5k2 -C = 2.5 F vt) M w R2 RE =1kΩ. Ce = 00 =
