For the differential amplifier circuit below, B = 100, VBE(on) = 0.7V and VA= 0. (a) Find the collector current of the t

Post by answerhappygod »

For The Differential Amplifier Circuit Below B 100 Vbe On 0 7v And Va 0 A Find The Collector Current Of The T 1
For The Differential Amplifier Circuit Below B 100 Vbe On 0 7v And Va 0 A Find The Collector Current Of The T 1 (32.36 KiB) Viewed 18 times

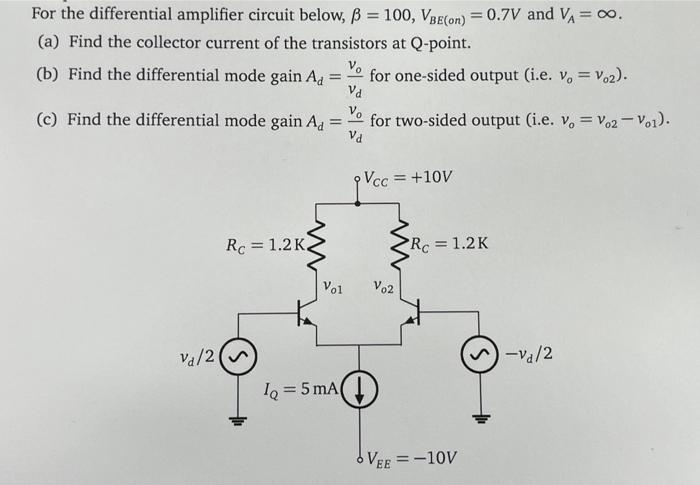

For the differential amplifier circuit below, B = 100, VBE(on) = 0.7V and VA= 0. (a) Find the collector current of the transistors at Q-point. V. (b) Find the differential mode gain Ad for one-sided output (i.e. v. = V.2). va V. (c) Find the differential mode gain Ad for two-sided output (i.e. v. = V.2 - Vol). va = Vcc = +10V Rc = 1.2K Rc = 1.2K Vol V.2 va/2 1 -va/2 TQ = 5mA VEE = -10V
