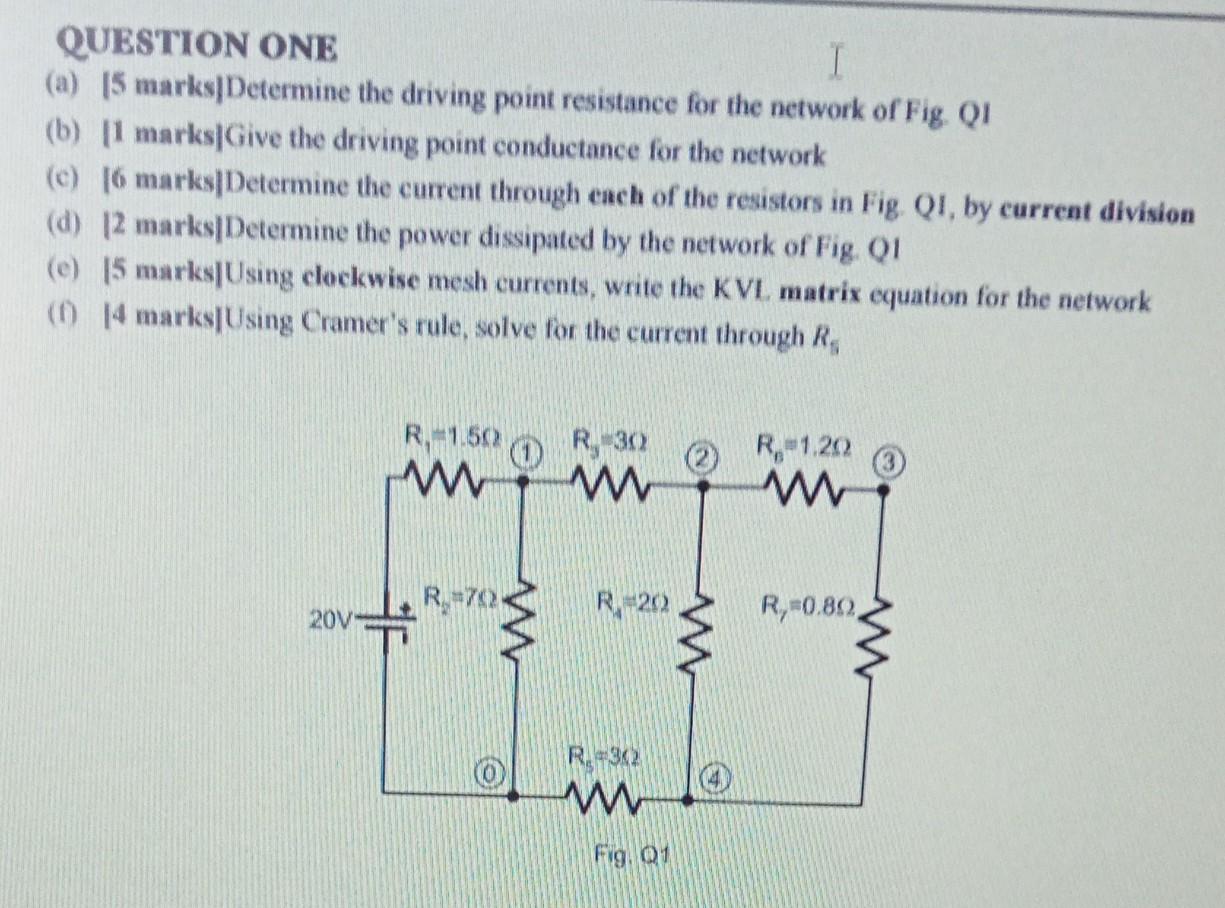

QUESTION ONE I (a) 15 marks]Determine the driving point resistance for the network of Fig. QI (b) [1 marks|Give the driving point conductance for the network (c) 6 marks]Determine the current through each of the resistors in Fig. QI, by current division (d) [2 marks]Determine the power dissipated by the network of Fig Q1 (e) 15 marks]Using clockwise mesh currents, write the KVL matrix equation for the network ( 14 marks Using Cramer's rule, solve for the current through R R 1503 R, 30 R. 1.20 * 3 W M R-70 R. 20 2011 W R,-0.89 0 R-362 F9 01
