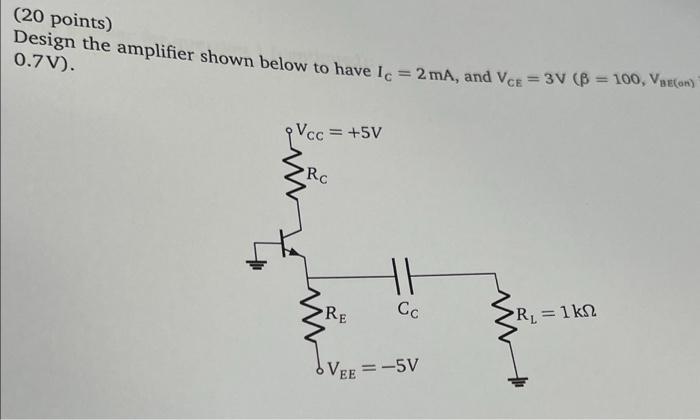

(20 points) Design the amplifier shown below to have I c = 2 mA, and Vce = 3V (8 = 100, Vecon) 0.7V). CE qVcc = +5V Ro H
