b) A continuous-time signal, y(t), is given by y(t) = 2, for 0 < t < 1, and y(t) = 0, for all other values of t. Draw y(

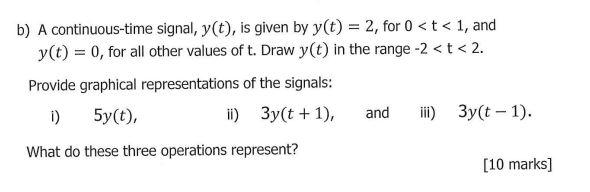

b) A continuous-time signal, y(t), is given by y(t) = 2, for 0 < t < 1, and y(t) = 0, for all other values of t. Draw y(t) in the range -2 <t< 2. Provide graphical representations of the signals: i) 5y(t), ii) 3y(t + 1), and iii) 3y(t-1). What do these three operations represent? [10 marks]
