C- Consider the LC-nonlinear circuit as shown in Fig. 2C. If the characteristic of the flux controlled inductor is given

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

C- Consider the LC-nonlinear circuit as shown in Fig. 2C. If the characteristic of the flux controlled inductor is given

Post by answerhappygod »

C Consider The Lc Nonlinear Circuit As Shown In Fig 2c If The Characteristic Of The Flux Controlled Inductor Is Given 1
C Consider The Lc Nonlinear Circuit As Shown In Fig 2c If The Characteristic Of The Flux Controlled Inductor Is Given 1 (19.43 KiB) Viewed 26 times

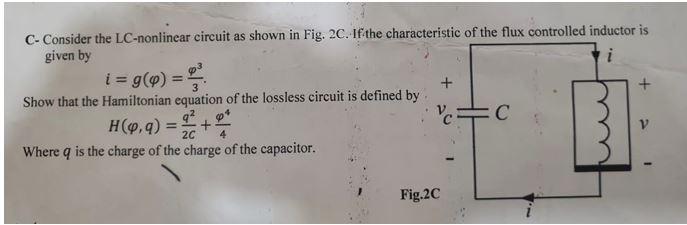

C- Consider the LC-nonlinear circuit as shown in Fig. 2C. If the characteristic of the flux controlled inductor is given by i = g(6) + + Show that the Hamiltonian equation of the lossless circuit is defined by q? H(0,0) Where q is the charge of the charge of the capacitor. = "C + 20 4 V 1 Fig.2C
