Question 17 Consider The Following System G S 8 S 1 S 2 S 2 3s Determine The Frequency At Which The Gain H 1 (182.31 KiB) Viewed 11 times

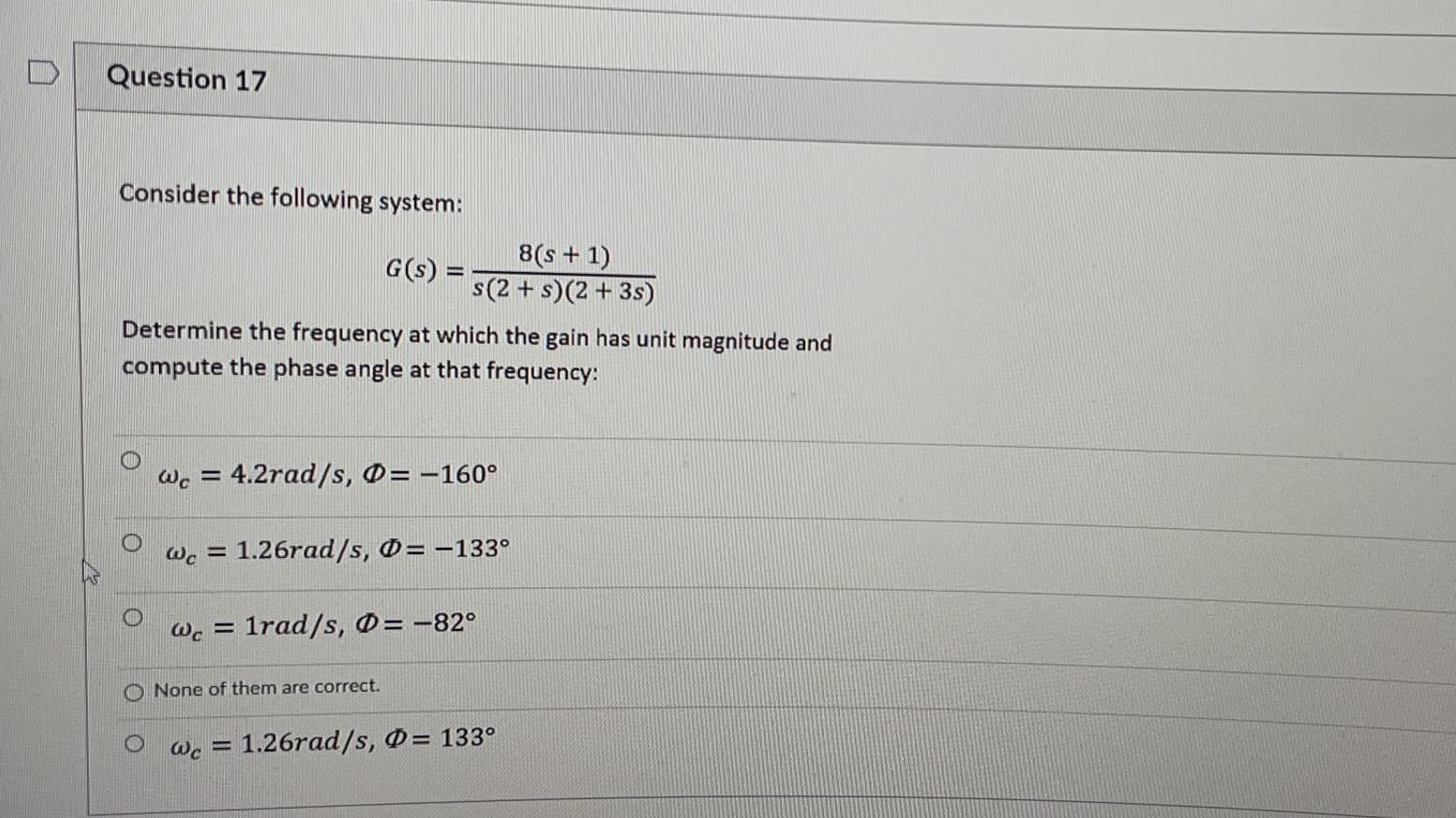

please solve it fast, just need the correct option Question 17 Consider the following system: G(s) = 8(s + 1) s(2 + s) (2 + 3s) Determine the frequency at which the gain has unit magnitude and compute the phase angle at that frequency: w = 4.2rad/s, O= -160° wc = 1.26rad/s, O= -133° wc = 1rad/s, O= -82° None of them are correct. Wc = 1.26rad/s, Q = 133º
