Root Locus Polos en - a - bj K=c, polos en 0 +- dj Imaginary Axis (seconds) Real Axis (seconds) (Polos en = Poles in) Le

[answerhappygod]

Root Locus Polos En A Bj K C Polos En 0 Dj Imaginary Axis Seconds Real Axis Seconds Polos En Poles In Le 1 (115.65 KiB) Viewed 26 times

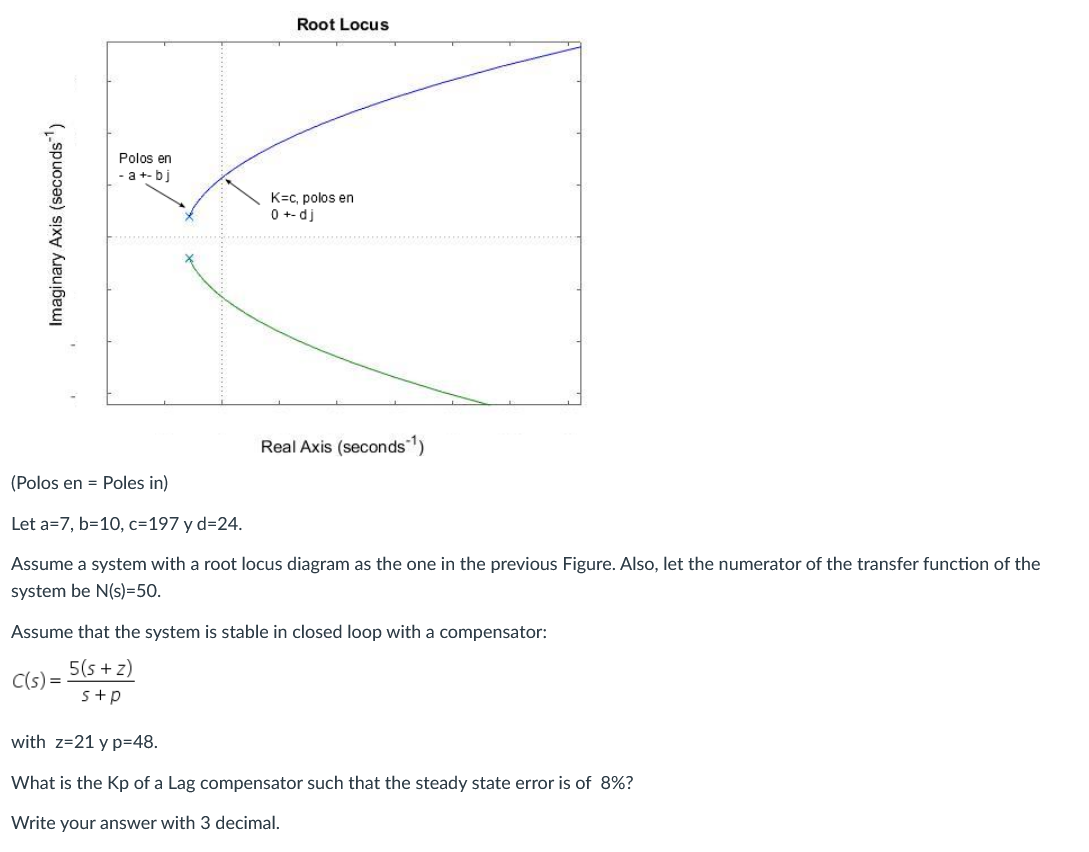

Root Locus Polos en - a - bj K=c, polos en 0 +- dj Imaginary Axis (seconds) Real Axis (seconds) (Polos en = Poles in) Let a=7, b=10, c=197 y d=24. Assume a system with a root locus diagram as the one in the previous Figure. Also, let the numerator of the transfer function of the system be N(s)=50. Assume that the system is stable in closed loop with a compensator: C(s) = 5(5+z) 5+p with z=21 y p=48. What is the Kp of a Lag compensator such that the steady state error is of 8%? Write your answer with 3 decimal.
