Find the current J in the indicated circuit under stationary conditions d/dt=0 and find the energy stored in the inducta

Post by answerhappygod »

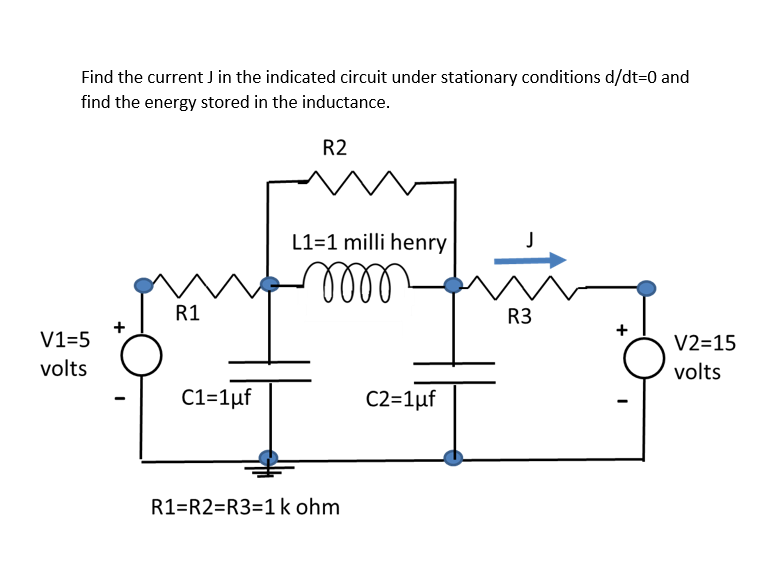

Find The Current J In The Indicated Circuit Under Stationary Conditions D Dt 0 And Find The Energy Stored In The Inducta 1
Find The Current J In The Indicated Circuit Under Stationary Conditions D Dt 0 And Find The Energy Stored In The Inducta 1 (45.54 KiB) Viewed 40 times
Find the current J in the indicated circuit under stationary conditions d/dt=0 and find the energy stored in the inductance. R2 L1=1 milli henry J mo ୪୪୪ R1 R3 + + V1=5 volts V2=15 volts C1=1uf C2=1uf R1=R2=R3=1 k ohm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
