- B Find The Node Voltage Of The Following Circuit Using Nodal Analysis Verify Your Answer Using Multisim 20 Pts 1 1 0 1 (110.49 KiB) Viewed 45 times
THE ANSWER FROM PART A. IT IS NOT THE SAME PROBLEM
SO IT WILL BE AN INCORRECT ANSWER.
I asked Part A earlier, and the scanned document with blue ink
was correct but for Part A ONLY, not Part B. Please do not copy and
paste. Read the problem carefully. It requires a correct hand
calculation, multisim, and matlab. The problem wants you to find
the node voltages (i.e. Vs1, Vs2 and Vs3). Thank you.

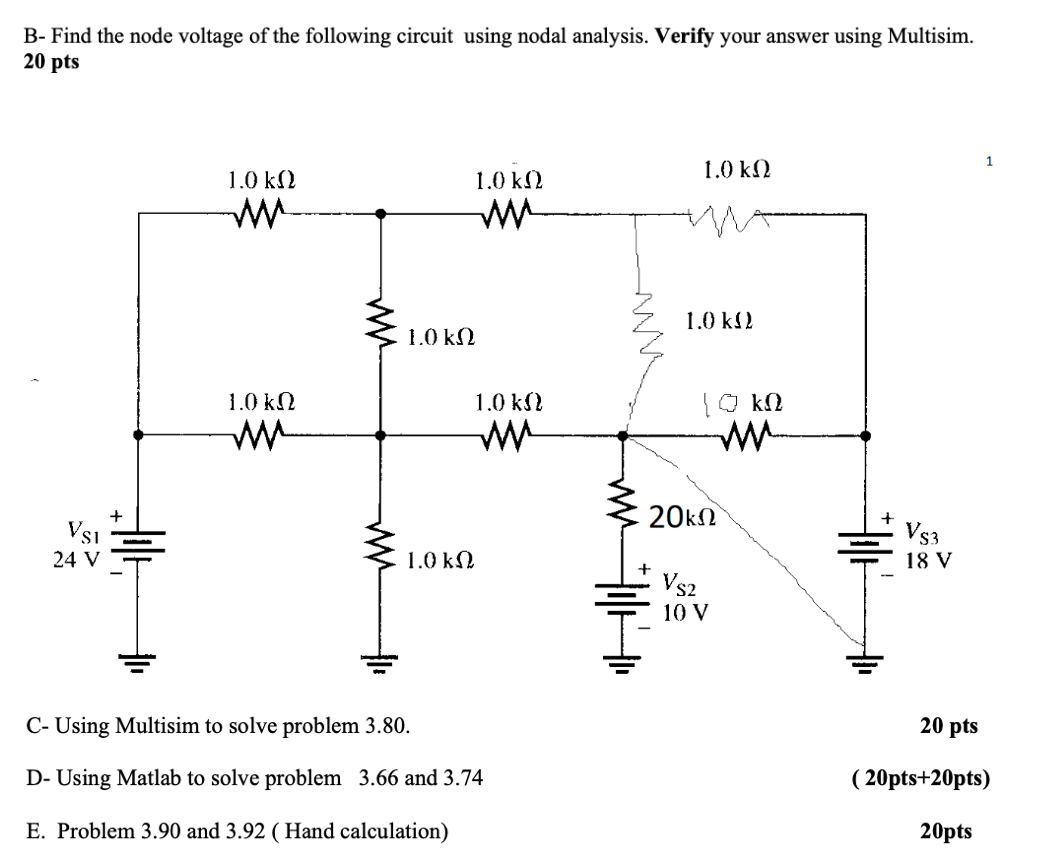

B- Find the node voltage of the following circuit using nodal analysis. Verify your answer using Multisim. 20 pts 1 1.0 kΩ 1.0 kΩ 1.0 ΚΩ 1.Ο ΚΩ 1.0 kΩ 1.0 k2 Ο ΚΩ 1.0 kΩ ΜΑ- w- Vsi 20kΩ Vs, li = 24V 1.Ο ΚΩ 18 V Vs2 10V C- Using Multisim to solve problem 3.80. 20 pts D- Using Matlab to solve problem 3.66 and 3.74 (20pts+20pts) E. Problem 3.90 and 3.92 (Hand calculation) 20pts
