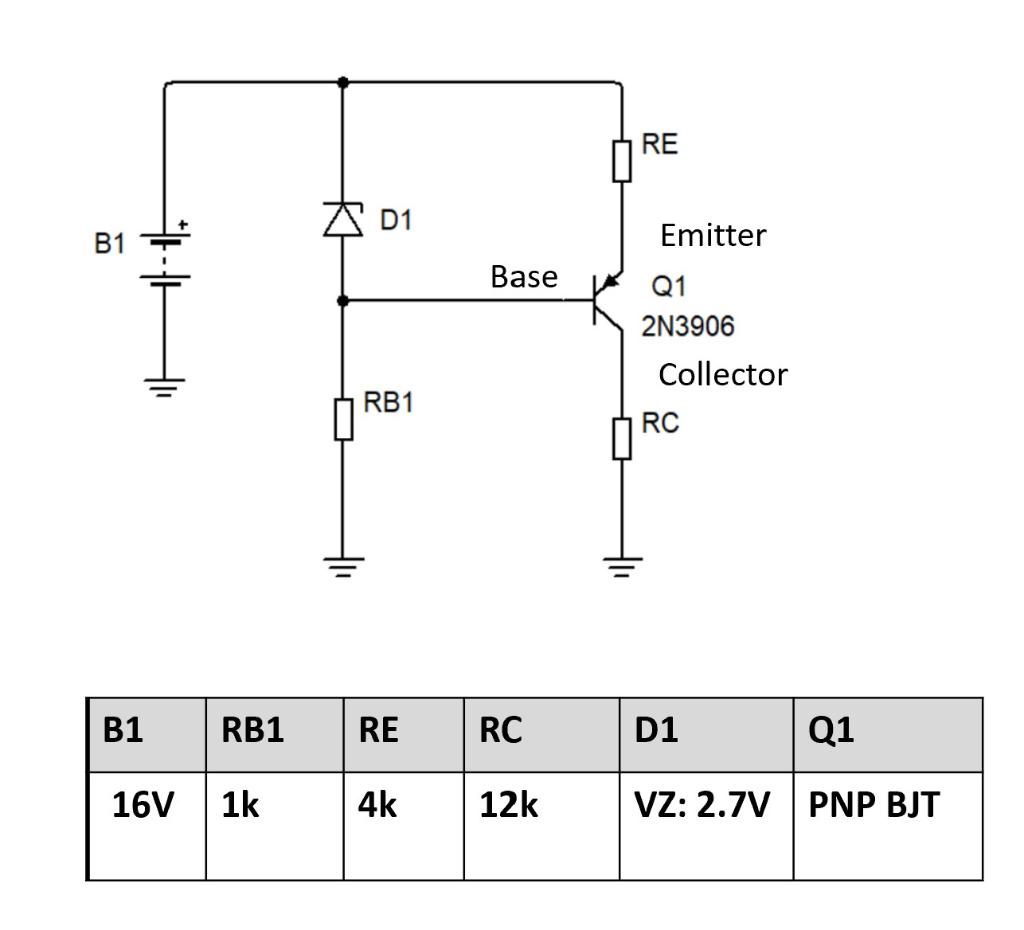

Re D1 B1 Emitter Base Q1 2n3906 Collector Rb1 Rc B1 Rb1 Re Rc D1 Q1 16v 1k 4k 12k Vz 2 7v Pnp Bjt 1 (48.21 KiB) Viewed 56 times
For the following problem assume the current through the base in
equal to zero.
Find the currents through the emitter (I_E) and collector
(I_C)
Find the voltage at the emitter (V_E) and collector (V_C),
find the voltage from base to emitter (V_BE) and base to
collector (V_BC)
RE D1 B1 Emitter Base Q1 2N3906 Collector RB1 RC B1 RB1 RE RC D1 Q1 16V 1k 4k 12k VZ: 2.7V PNP BJT
