LIKE!!!!
A=5 B=2 F=2
- Please Answer Before 3 30pm Gmt I Need This Please Will Like A 5 B 2 F 2 1 (93.85 KiB) Viewed 37 times
PLEASE ANSWER BEFORE 3.30PM GMT I NEED THIS PLEASE WILL LIKE!!!! A=5 B=2 F=2
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
PLEASE ANSWER BEFORE 3.30PM GMT I NEED THIS PLEASE WILL LIKE!!!! A=5 B=2 F=2
PLEASE ANSWER BEFORE 3.30PM GMT I NEED THIS PLEASE WILL
LIKE!!!!
A=5 B=2 F=2

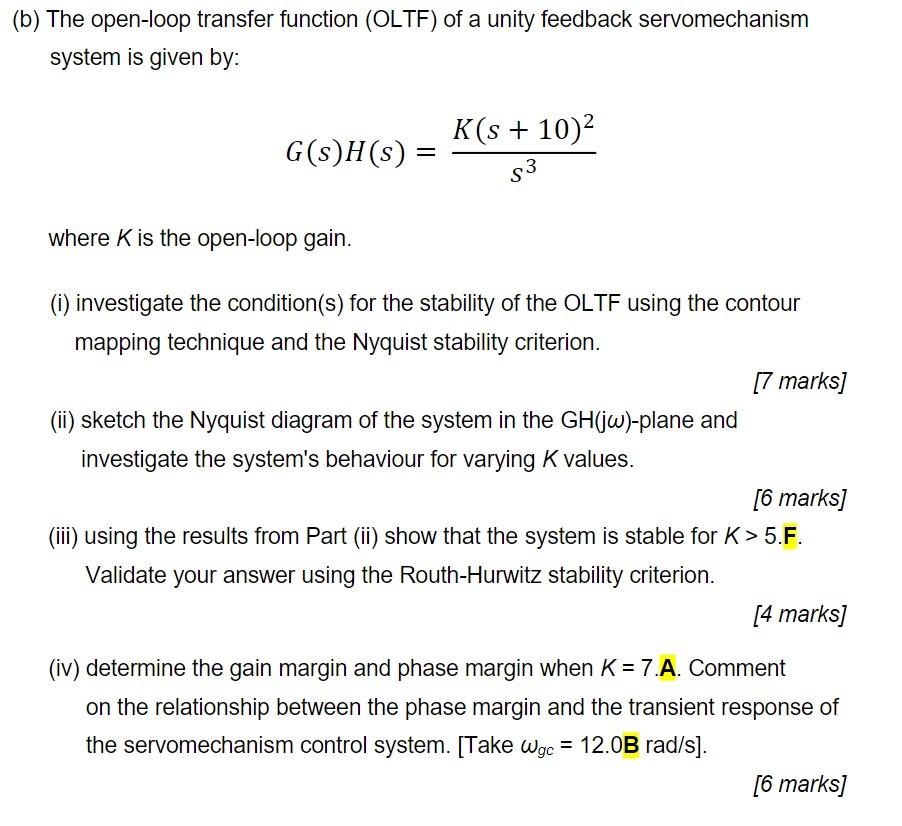

(b) The open-loop transfer function (OLTF) of a unity feedback servomechanism system is given by: K(s + 10) G(s)H(s) = = S3 where K is the open-loop gain. (i) investigate the condition(s) for the stability of the OLTF using the contour mapping technique and the Nyquist stability criterion. [7 marks] (ii) sketch the Nyquist diagram of the system in the GH(jw)-plane and investigate the system's behaviour for varying Kvalues. [6 marks] (iii) using the results from Part (ii) show that the system is stable for K> 5.F. Validate your answer using the Routh-Hurwitz stability criterion. [4 marks] (iv) determine the gain margin and phase margin when K = 7.A. Comment on the relationship between the phase margin and the transient response of the servomechanism control system. (Take Wgc = 12.0B rad/s]. [6 marks]
LIKE!!!!
A=5 B=2 F=2
(b) The open-loop transfer function (OLTF) of a unity feedback servomechanism system is given by: K(s + 10) G(s)H(s) = = S3 where K is the open-loop gain. (i) investigate the condition(s) for the stability of the OLTF using the contour mapping technique and the Nyquist stability criterion. [7 marks] (ii) sketch the Nyquist diagram of the system in the GH(jw)-plane and investigate the system's behaviour for varying Kvalues. [6 marks] (iii) using the results from Part (ii) show that the system is stable for K> 5.F. Validate your answer using the Routh-Hurwitz stability criterion. [4 marks] (iv) determine the gain margin and phase margin when K = 7.A. Comment on the relationship between the phase margin and the transient response of the servomechanism control system. (Take Wgc = 12.0B rad/s]. [6 marks]
