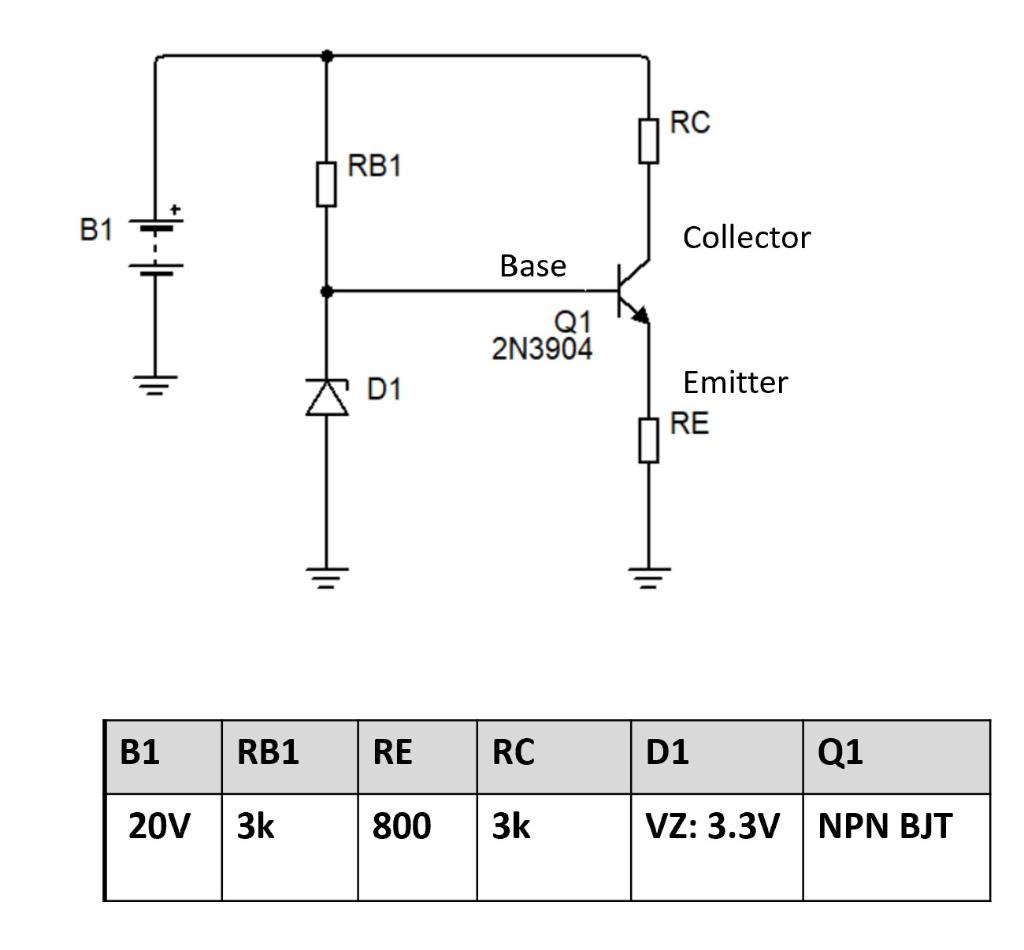

Rc Rb1 B1 Collector Base Q1 2n3904 D1 Emitter Re B1 Rb1 Re Rc D1 Q1 20v 3k 800 3k Vz 3 3v Npn Bjt 1 (49.93 KiB) Viewed 40 times
For the following problem assume the current through the base in
equal to zero.
Find the currents through the emitter (I_E) and collector
(I_C)
Find the voltage at the emitter (V_E) and collector (V_C),
find the voltage from base to emitter (V_BE) and base to
collector (V_BC)
RC RB1 B1 -+ Collector Base Q1 2N3904 D1 Emitter RE = B1 RB1 RE RC D1 Q1 20V 3k 800 3k VZ: 3.3V NPN BJT
