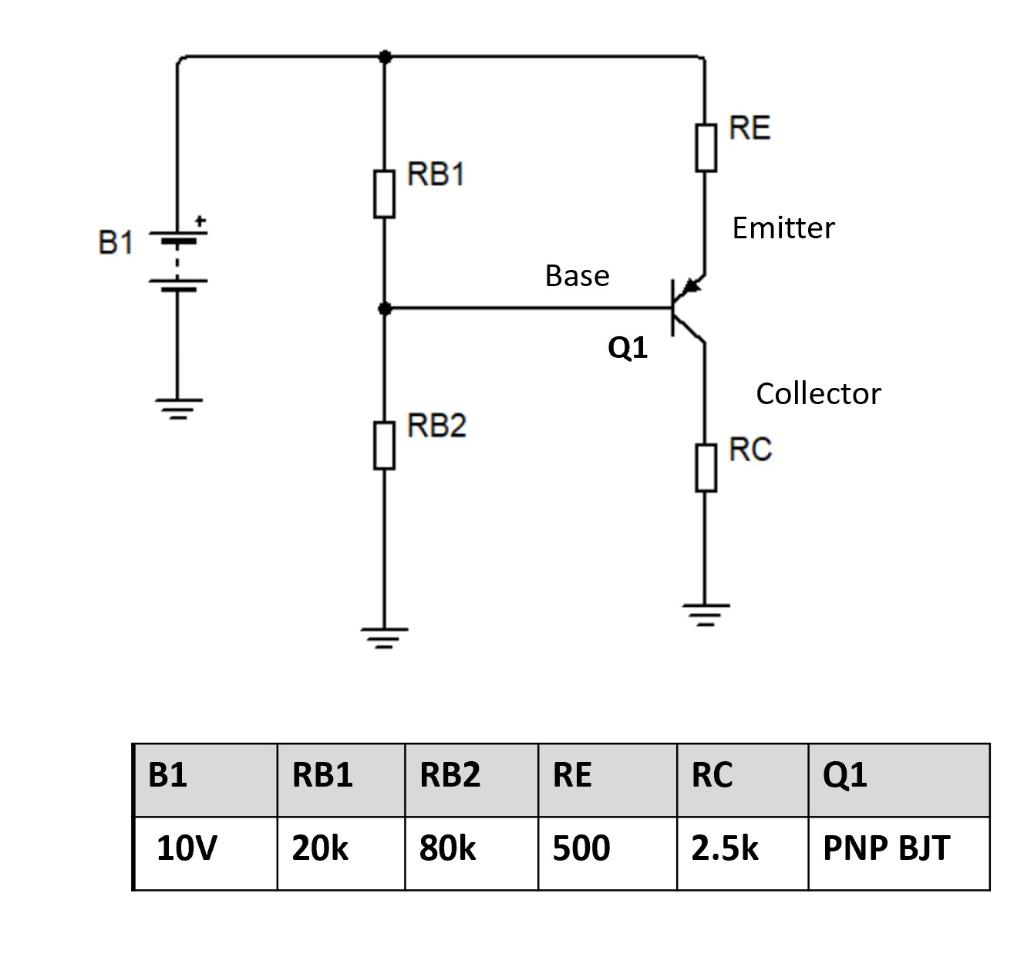

Re Rb1 B1 Emitter Base Q1 Ih Collector Rb2 Rc B1 Rb1 Rb2 Re Rc Q1 10v 20k 80k 500 2 5k Pnp Bjt 1 (49.1 KiB) Viewed 49 times
For the following problem assume the current through the base in
equal to zero.
Find the currents through the emitter (I_E) and collector
(I_C)
Find the voltage at the emitter (V_E) and collector (V_C),
find the voltage from base to emitter (V_BE) and base to
collector (V_BC)
RE RB1 B1 Emitter Base Q1 IH Collector RB2 RC B1 RB1 RB2 RE RC Q1 10V 20k 80k 500 2.5k PNP BJT
