Subject: Control system
I want solve the question very necessary that please as soon as possible
and want solve correct and clear please and Thank you

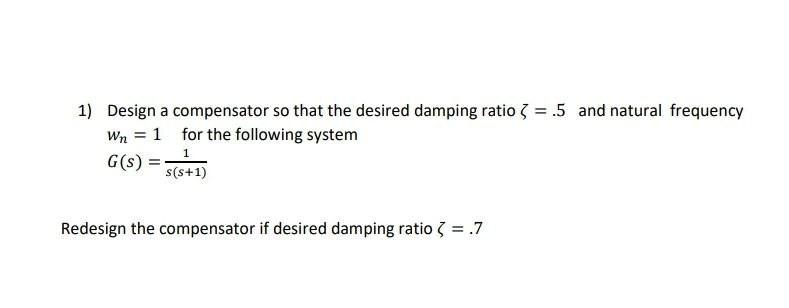

1) Design a compensator so that the desired damping ratio 3 = .5 and natural frequency Wn = 1 for the following system G(s) = 1 s(s+1) Redesign the compensator if desired damping ratio 1 = .7
