= For each of the following circuits shown in the figure, find the labeled node voltages. The NMOS transistors have V4 =

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

= For each of the following circuits shown in the figure, find the labeled node voltages. The NMOS transistors have V4 =

Post by answerhappygod »

For Each Of The Following Circuits Shown In The Figure Find The Labeled Node Voltages The Nmos Transistors Have V4 1
For Each Of The Following Circuits Shown In The Figure Find The Labeled Node Voltages The Nmos Transistors Have V4 1 (169.19 KiB) Viewed 47 times

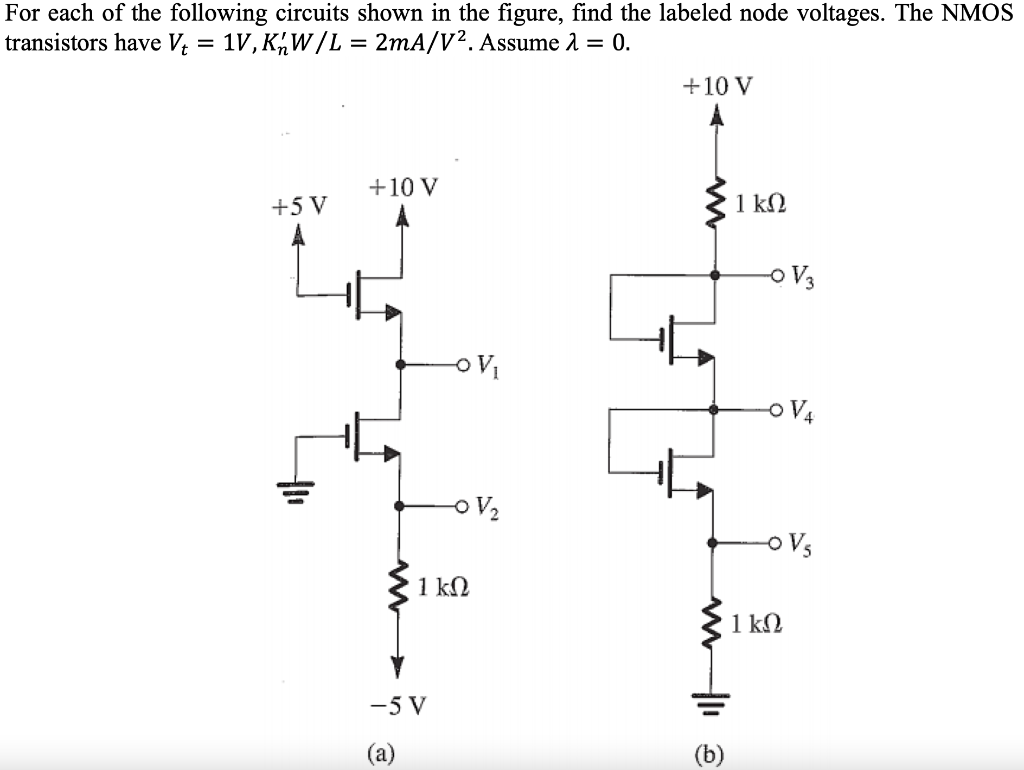

= For each of the following circuits shown in the figure, find the labeled node voltages. The NMOS transistors have V4 = 1V, KÝW/L = 2mA/V2. Assume 1 = 0. +10 V +10 V +5V 1 k 2 -o V₃ -OV, -o V4 = -oV2 -OV, 1 k 12 1 k 2 ☞ w -5 V (a)
