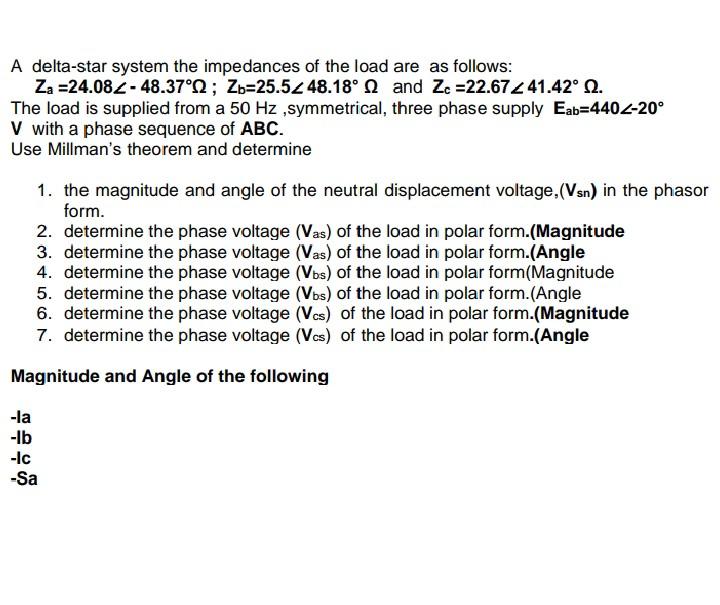

A delta-star system the impedances of the load are as follows: Za =24.082-48.37°Q; Zb=25.52 48.18º and Zc = 22.672 41.42° 1. The load is supplied from a 50 Hz ,symmetrical, three phase supply Eab=4402-20° V with a phase sequence of ABC. Use Millman's theorem and determine 1. the magnitude and angle of the neutral displacement voltage (Vs) in the phasor form. 2. determine the phase voltage (Vas) of the load in polar form.(Magnitude 3. determine the phase voltage (Vas) of the load in polar form.(Angle 4. determine the phase voltage (Vbs) of the load in polar form(Magnitude 5. determine the phase voltage (Vbs) of the load in polar form.(Angle 6. determine the phase voltage (Vcs) of the load in polar form.(Magnitude 7. determine the phase voltage (Vcs) of the load in polar form.(Angle Magnitude and Angle of the following -la -Ib -IC -Sa
