2.1. Study the data sheet of 2N7000 transistor. From the data sheet, extract the parameters (VTH, un Cox, W/L) that you
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
2.1. Study the data sheet of 2N7000 transistor. From the data sheet, extract the parameters (VTH, un Cox, W/L) that you

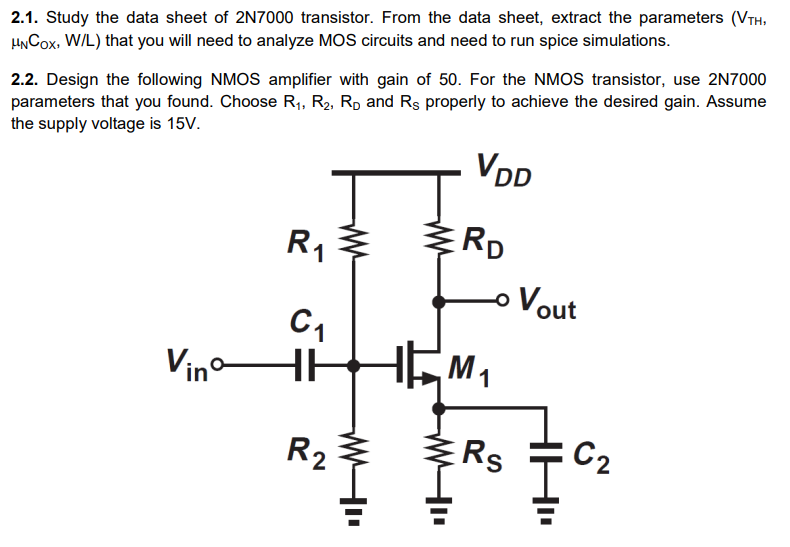

2.1. Study the data sheet of 2N7000 transistor. From the data sheet, extract the parameters (VTH, un Cox, W/L) that you will need to analyze MOS circuits and need to run spice simulations. 2.2. Design the following NMOS amplifier with gain of 50. For the NMOS transistor, use 2N7000 parameters that you found. Choose R1, R2, Ro and Rs properly to achieve the desired gain. Assume the supply voltage is 15V. VOD R 1 BRD - Vout Vina C1 HE HEM M1 R23 ERs C2 HHH
