15V D-MOSFET $1.252 C2 S21MΩ HE + Vo R1 C1 HH 1kΩ Ір VGS RL $1.2k. 10ΜΩ >1kΩ 2 Vs Zi Z. 1 GIVEN: • IDss = 12 mA • Vp = -

Post by answerhappygod »

1
1 (33.72 KiB) Viewed 39 times

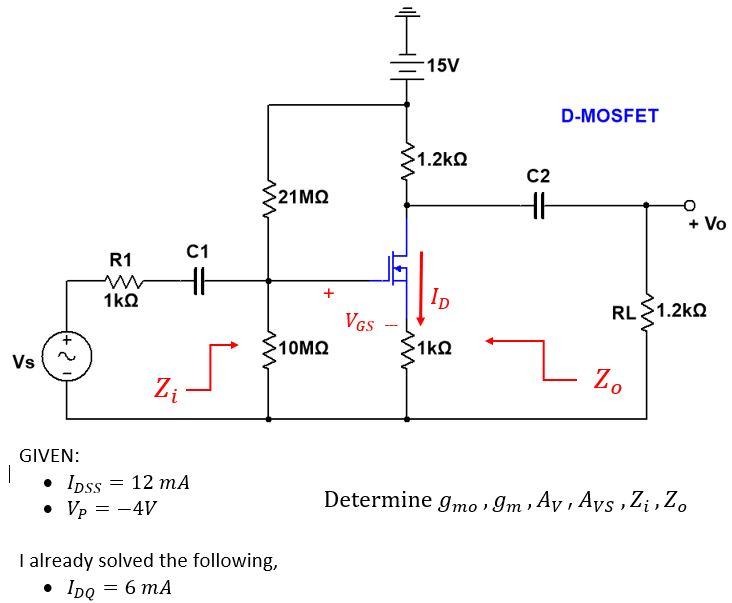

15V D-MOSFET $1.252 C2 S21MΩ HE + Vo R1 C1 HH 1kΩ Ір VGS RL $1.2k. 10ΜΩ >1kΩ 2 Vs Zi Z. 1 GIVEN: • IDss = 12 mA • Vp = -4V = Determine 9mo, Im, Ay, Ays ,Zi,Z. I already solved the following, • IDQ = 6 mA
