= = For the circuit given below, the voltage on the left and side is given as V=50V, and the load resistor is given as R
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
= = For the circuit given below, the voltage on the left and side is given as V=50V, and the load resistor is given as R

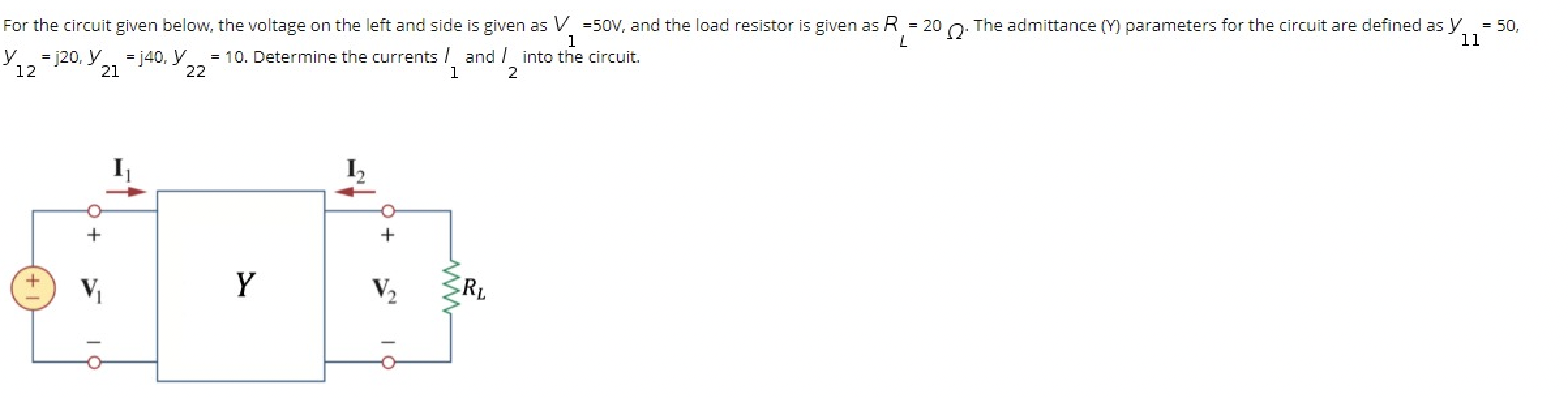

= = For the circuit given below, the voltage on the left and side is given as V=50V, and the load resistor is given as R = 20. The admittance (Y) parameters for the circuit are defined as y, = 50, y = j20, y = j40, y = 10. Determine the currents / and / into the circuit. 1 L il = 12 21 22 1 2 w V Y V2 SRL 10
