13 5 MY 71 29 2112 V. w 10 Consider the network of Fig. P3.1. (a) Label all node voltages and branch currents. (b) Use n

Post by answerhappygod »

13 5 My 71 29 2112 V W 10 Consider The Network Of Fig P3 1 A Label All Node Voltages And Branch Currents B Use N 1
13 5 My 71 29 2112 V W 10 Consider The Network Of Fig P3 1 A Label All Node Voltages And Branch Currents B Use N 1 (50.2 KiB) Viewed 30 times

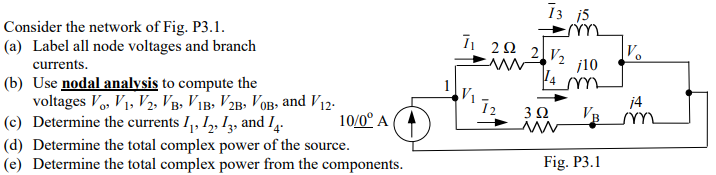

13 5 MY 71 29 2112 V. w 10 Consider the network of Fig. P3.1. (a) Label all node voltages and branch currents. (b) Use nodal analysis to compute the voltages V V1, V2, VB, V1B, V2B, VOB, and V12- (c) Determine the currents 11, 12, 13, and 14 10/0° A (d) Determine the total complex power of the source. (e) Determine the total complex power from the components. 14 322 M VBM Fig. P3.1
