Pls help me solve the question below. Need urgently. Pls
give a clear and concise solution. Upvote guaranteed,
thanks.
Pls Help Me Solve The Question Below Need Urgently Pls Give A Clear And Concise Solution Upvote Guaranteed Thanks 1 (19.99 KiB) Viewed 43 times
Pls Help Me Solve The Question Below Need Urgently Pls Give A Clear And Concise Solution Upvote Guaranteed Thanks 2 (10.22 KiB) Viewed 43 times

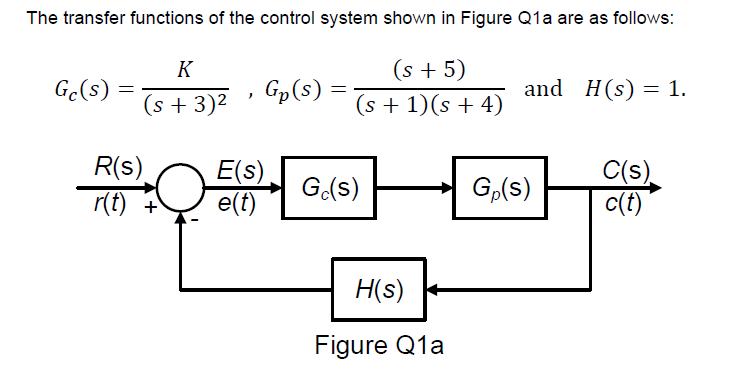

The transfer functions of the control system shown in Figure Q1a are as follows: Gc(s) - K (s + 3)2 Gp(s) (s + 5) (s + 1)(s + 4) and H(s) = 1. R(S) r(t) + E(s). e(t) Gc(s) Gp(s) C(s) c(t) H(s) Figure Q1a

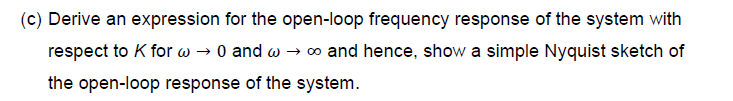

(c) Derive an expression for the open-loop frequency response of the system with respect to K for w → 0 and w 700 and hence, show a simple Nyquist sketch of the open-loop response of the system.
