5V IEq = 0.8 mA CC3 HE CC1 HE B = 100 CC2 + Vo 2 Vs RB10k2 HE RC $4k Zi RL >4.2 $ -5V I _ Z. Determine re, Zị, Z., Ay, A

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

5V IEq = 0.8 mA CC3 HE CC1 HE B = 100 CC2 + Vo 2 Vs RB10k2 HE RC $4k Zi RL >4.2 $ -5V I _ Z. Determine re, Zị, Z., Ay, A

Post by answerhappygod »

1
1 (32.85 KiB) Viewed 51 times

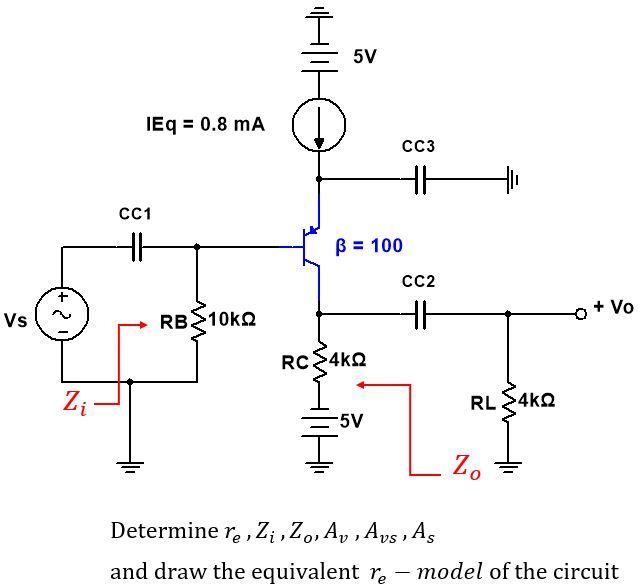

5V IEq = 0.8 mA CC3 HE CC1 HE B = 100 CC2 + Vo 2 Vs RB10k2 HE RC $4k Zi RL >4.2 $ -5V I _ Z. Determine re, Zị, Z., Ay, Ays , As and draw the equivalent re - model of the circuit
