1) The circuit below has the voltage gain of 4 with the output impedance of 450 2. Determine the value of R1, R2, R and

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

1) The circuit below has the voltage gain of 4 with the output impedance of 450 2. Determine the value of R1, R2, R and

Post by answerhappygod »

1 The Circuit Below Has The Voltage Gain Of 4 With The Output Impedance Of 450 2 Determine The Value Of R1 R2 R And 1
1 The Circuit Below Has The Voltage Gain Of 4 With The Output Impedance Of 450 2 Determine The Value Of R1 R2 R And 1 (16.84 KiB) Viewed 44 times

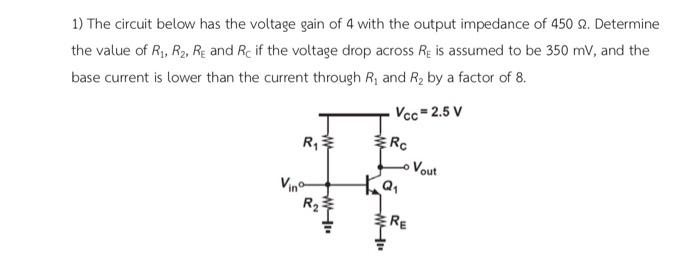

1) The circuit below has the voltage gain of 4 with the output impedance of 450 2. Determine the value of R1, R2, R and Rc if the voltage drop across Re is assumed to be 350 mV, and the base current is lower than the current through R and R, by a factor of 8. Vcc=2.5 V R ERc • Vout Vin tai R2 -W4 RE
