(a) For the power amplifier circuit of Figure Q1(a), i). analyse the input power, the output power and the efficiency if

Post by answerhappygod »

A For The Power Amplifier Circuit Of Figure Q1 A I Analyse The Input Power The Output Power And The Efficiency If 1
A For The Power Amplifier Circuit Of Figure Q1 A I Analyse The Input Power The Output Power And The Efficiency If 1 (47.85 KiB) Viewed 38 times

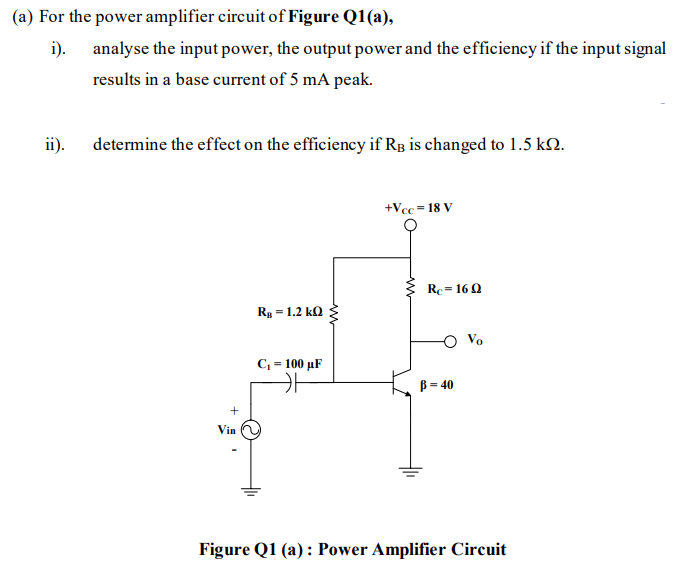

(a) For the power amplifier circuit of Figure Q1(a), i). analyse the input power, the output power and the efficiency if the input signal results in a base current of 5 mA peak. ii). determine the effect on the efficiency if RB is changed to 1.5 k12. +Vcc = 18 V Re-160 Rg = 1.2 k02 Vo C-100 uF B = 40 + Vin Figure Q1 (a): Power Amplifier Circuit
