PROBLEM 3 A unity feedback control system has the following loop transfer function K L(s)=G(s)H(s)=- s(s? +2s +5) a) Obt

Post by answerhappygod »

Problem 3 A Unity Feedback Control System Has The Following Loop Transfer Function K L S G S H S S S 2s 5 A Obt 1

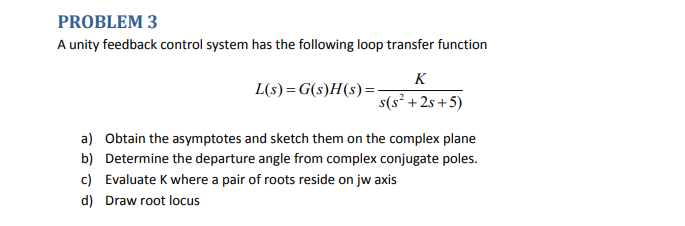

Problem 3 A Unity Feedback Control System Has The Following Loop Transfer Function K L S G S H S S S 2s 5 A Obt 1 (30.36 KiB) Viewed 41 times
PROBLEM 3 A unity feedback control system has the following loop transfer function K L(s)=G(s)H(s)=- s(s? +2s +5) a) Obtain the asymptotes and sketch them on the complex plane b) Determine the departure angle from complex conjugate poles. c) Evaluate K where a pair of roots reside on jw axis d) Draw root locus
