Where A = B = 9 , so r(t) = 1.9u(t) and ess<0.19
plz solve part a and b in 35 mins i will thumb up

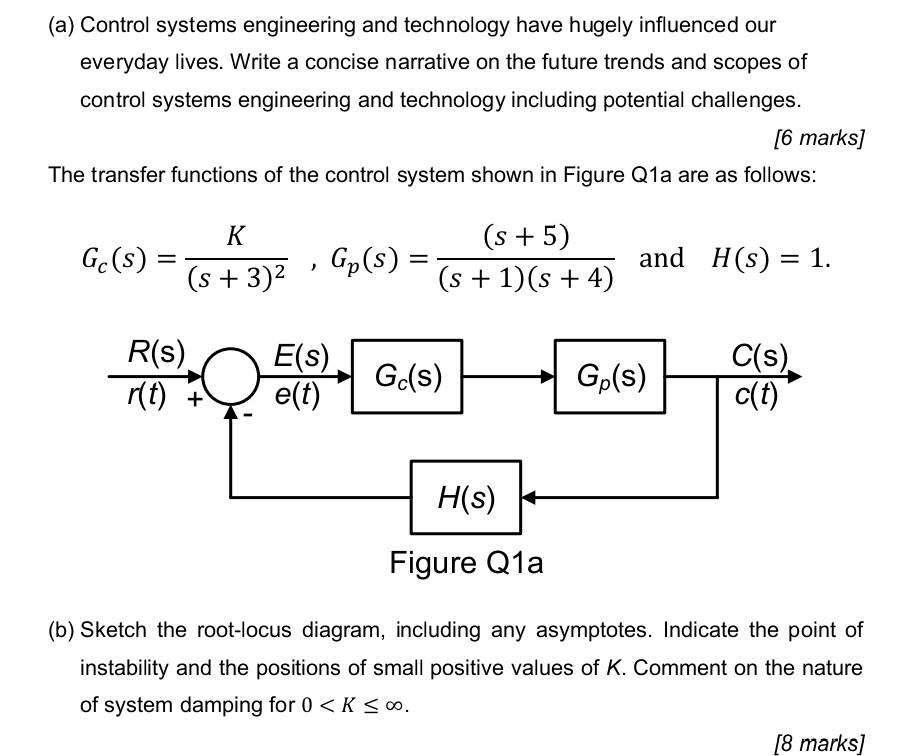

(a) Control systems engineering and technology have hugely influenced our everyday lives. Write a concise narrative on the future trends and scopes of control systems engineering and technology including potential challenges. [6 marks] The transfer functions of the control system shown in Figure Q1a are as follows: K Gc(s) = = (s + 5) (s + 1)(s + 4) Gp(s) and H(S) = 1. ) = (s + 3)2 R(S) r(t) + E(S) e(t) Gc(s) Gp(s) C(s) c(t) H(s) Figure Q1a (b) Sketch the root-locus diagram, including any asymptotes. Indicate the point of instability and the positions of small positive values of K. Comment on the nature of system damping for 0 <K <0. [8 marks]
