gm=4.6 mA,
Rl = ro = 20k ohm
Cgs = 20fF, Cgd = 5fF, Cdb = 20fF, Cl =20fF, Rsig=32k
Ohm

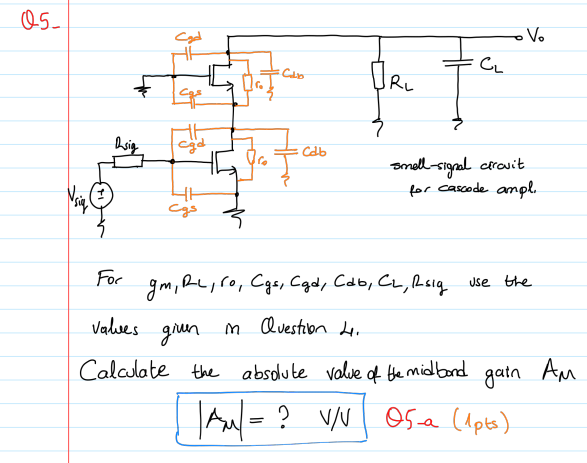

Os vo 0 3+ CL ° Caso Jau ag asig Cab snell-signal circuit for cascode angle cgs For gm, RL, ro, Cgs, Cgd, Cdo, CL, Rsig use the Values giun in Question 4 | Calculate the absolute value of the midband gain Am Au= ? VN Osa (1pts) (

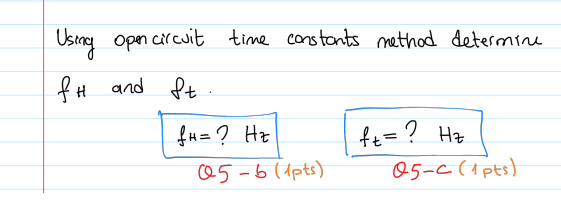

Using Open circuit time constants method determine ft and ft. fH= ? Hz ft=? Hz 025-5 (pts) 05-c (1 pts)
