Q2: Max power (10 marks) (C) Find the Thévenin and Norton equivalents of the circuit below with respect to terminals a a

Post by answerhappygod »

Q2 Max Power 10 Marks C Find The Thevenin And Norton Equivalents Of The Circuit Below With Respect To Terminals A A 1
Q2 Max Power 10 Marks C Find The Thevenin And Norton Equivalents Of The Circuit Below With Respect To Terminals A A 1 (52.96 KiB) Viewed 54 times

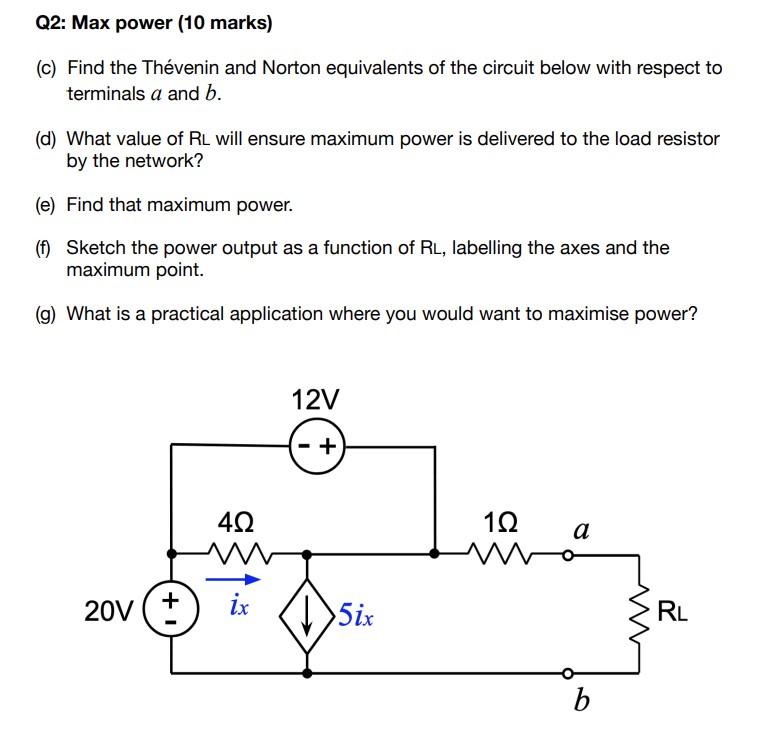

Q2: Max power (10 marks) (C) Find the Thévenin and Norton equivalents of the circuit below with respect to terminals a and b. (d) What value of RL will ensure maximum power is delivered to the load resistor by the network? (e) Find that maximum power. (1) Sketch the power output as a function of RL, labelling the axes and the maximum point. (g) What is a practical application where you would want to maximise power? 12V + 422 1.22 a 20v ( + ix >5ix RL b
