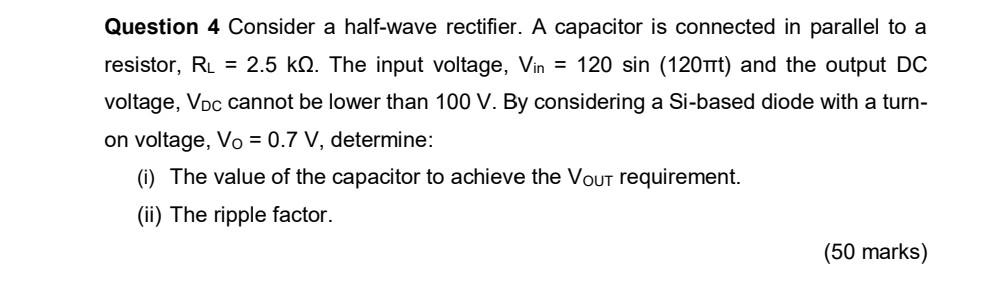

Question 4 Consider A Half Wave Rectifier A Capacitor Is Connected In Parallel To A Resistor Rl 2 5 Kn The Input Vo 1 (34.92 KiB) Viewed 38 times
please give answer according to mark given. Question 4 Consider a half-wave rectifier. A capacitor is connected in parallel to a resistor, RL = 2.5 kn. The input voltage, Vin = 120 sin (120nt) and the output DC voltage, Voc cannot be lower than 100 V. By considering a Si-based diode with a turn- on voltage, Vo = 0.7 V, determine: (i) The value of the capacitor to achieve the Vout requirement. (ii) The ripple factor. (50 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
