() For the block diagram of a control system shown in Figure Q1b, derive the closed-loop transfer function, C(s)/R(s). [

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

() For the block diagram of a control system shown in Figure Q1b, derive the closed-loop transfer function, C(s)/R(s). [

Post by answerhappygod »

For The Block Diagram Of A Control System Shown In Figure Q1b Derive The Closed Loop Transfer Function C S R S 1
For The Block Diagram Of A Control System Shown In Figure Q1b Derive The Closed Loop Transfer Function C S R S 1 (391.76 KiB) Viewed 45 times
urgent please!!

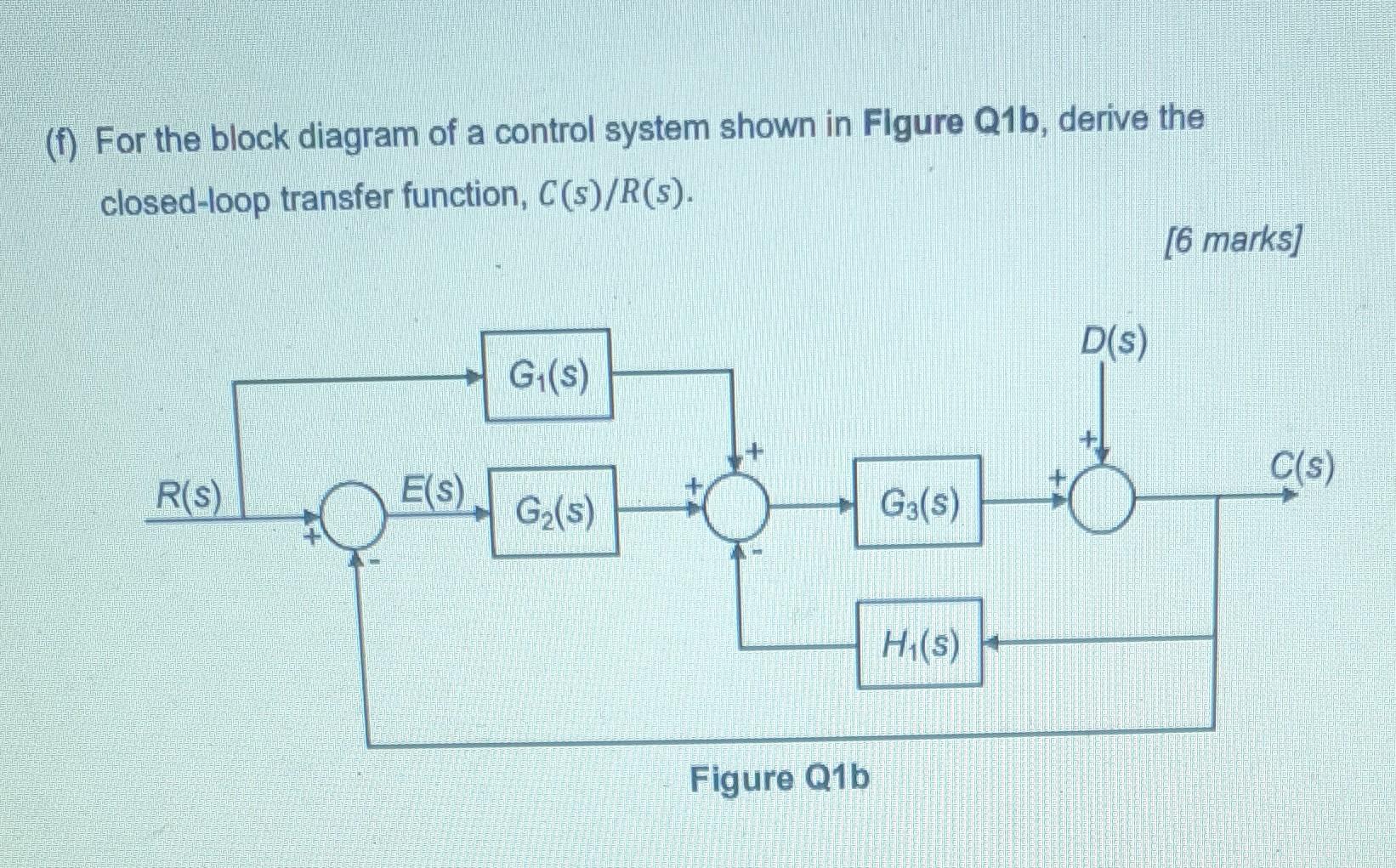

() For the block diagram of a control system shown in Figure Q1b, derive the closed-loop transfer function, C(s)/R(s). [6 marks] D(s) G(s) C(s) R(S) E(s) G (s) G3(s) H(S) Figure Q1b
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
