R Complete the table and generate the bode plot (Vout vs Freq, Av vs Freq and Phase vs Freq) of the following circuits!

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

R Complete the table and generate the bode plot (Vout vs Freq, Av vs Freq and Phase vs Freq) of the following circuits!

Post by answerhappygod »

R Complete The Table And Generate The Bode Plot Vout Vs Freq Av Vs Freq And Phase Vs Freq Of The Following Circuits 1
R Complete The Table And Generate The Bode Plot Vout Vs Freq Av Vs Freq And Phase Vs Freq Of The Following Circuits 1 (38.08 KiB) Viewed 63 times

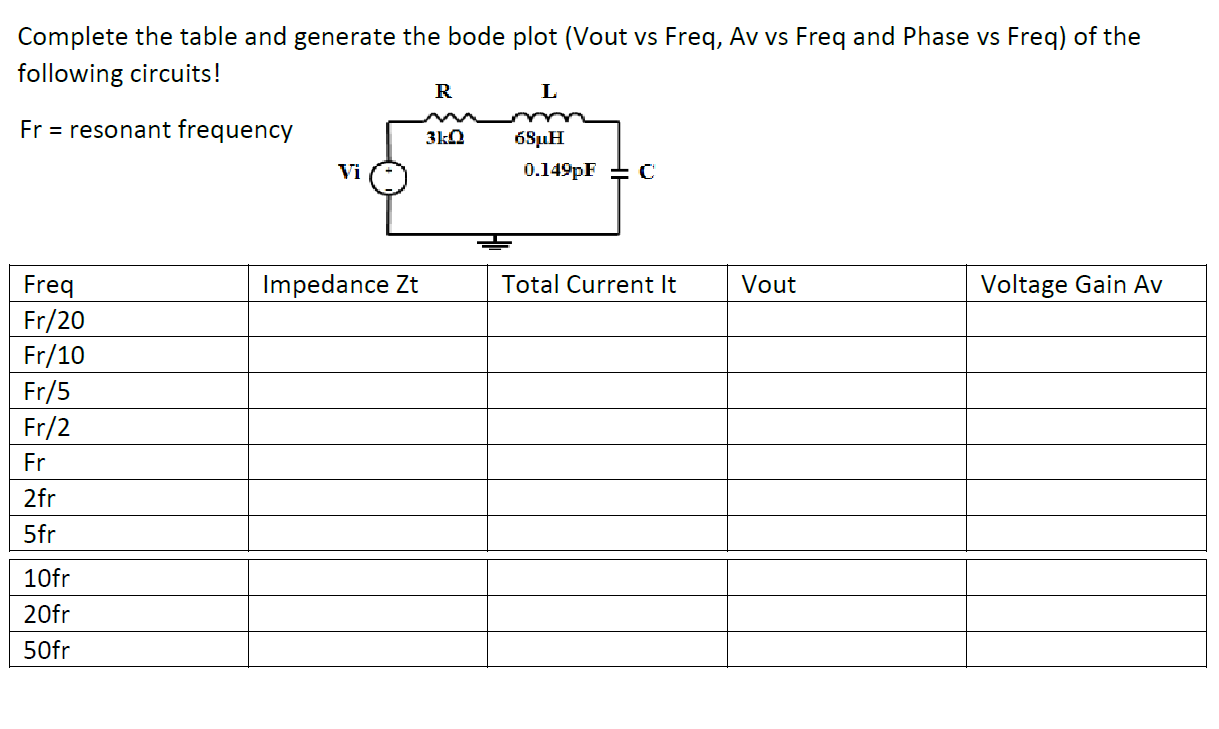

R Complete the table and generate the bode plot (Vout vs Freq, Av vs Freq and Phase vs Freq) of the following circuits! L Fr = resonant frequency 310 6SuH Vi 0.149pF C Impedance Zt Total Current It Vout Voltage Gain Av Freq Fr/20 Fr/10 Fr/5 Fr/2 Fr 2fr 5fr 10fr 20fr 50fr
