Complete the table and generate the bode plot (Vout vs Freq, Av vs Freq and Phase vs Freq) of the following circuits! R

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Complete the table and generate the bode plot (Vout vs Freq, Av vs Freq and Phase vs Freq) of the following circuits! R

Post by answerhappygod »

Complete The Table And Generate The Bode Plot Vout Vs Freq Av Vs Freq And Phase Vs Freq Of The Following Circuits R 1
Complete The Table And Generate The Bode Plot Vout Vs Freq Av Vs Freq And Phase Vs Freq Of The Following Circuits R 1 (41.3 KiB) Viewed 29 times

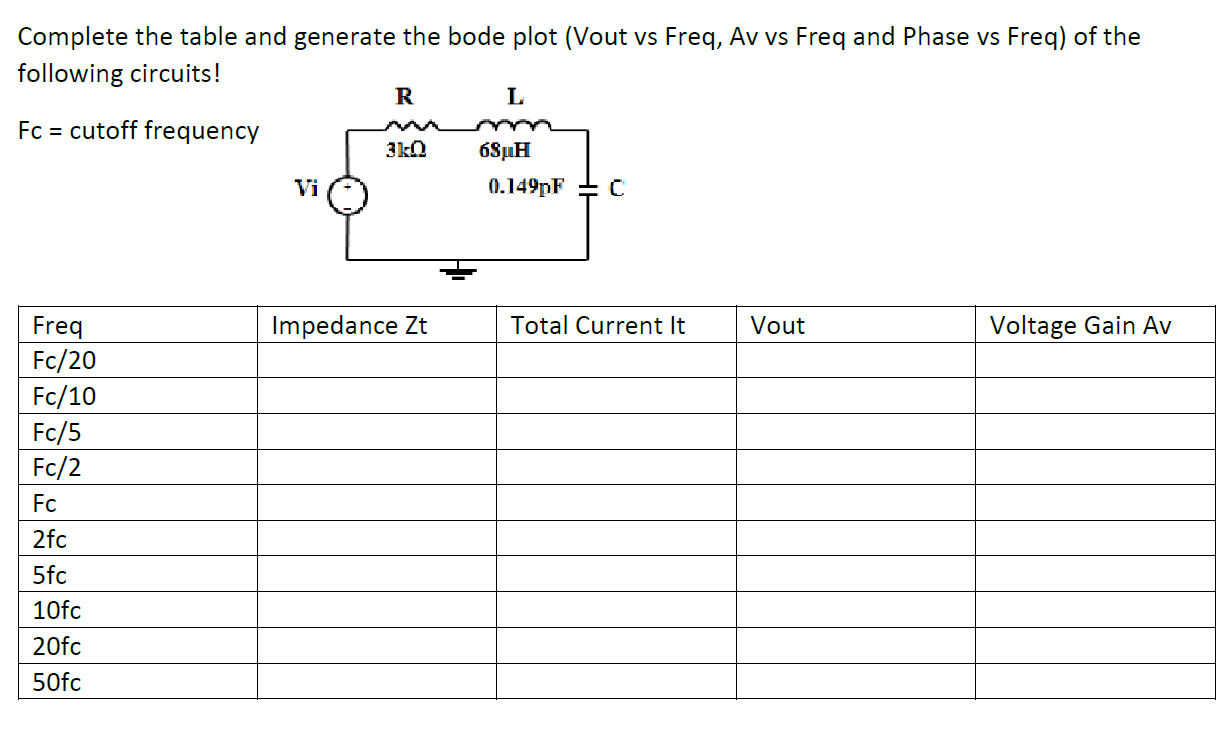

Complete the table and generate the bode plot (Vout vs Freq, Av vs Freq and Phase vs Freq) of the following circuits! R L Fc = cutoff frequency 360 68uH Vi 0.149pF =C Impedance Zt Total Current It Vout Voltage Gain Av Freq Fc/20 Fc/10 Fc/5 Fc/2 Fc 2fc 5fc 10fc 20fc 50fc
