Information about a single phase transformer is as follows: The core of the transformer is mantel type and the thickness

[answerhappygod]

Information About A Single Phase Transformer Is As Follows The Core Of The Transformer Is Mantel Type And The Thickness 1 (78.05 KiB) Viewed 63 times

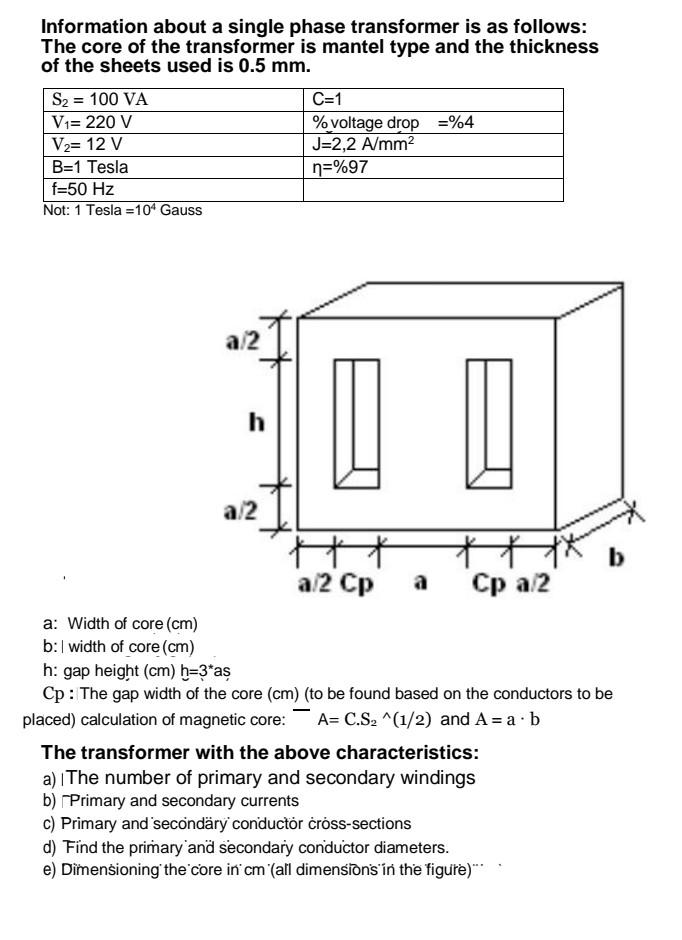

Information about a single phase transformer is as follows: The core of the transformer is mantel type and the thickness of the sheets used is 0.5 mm. S2 = 100 VA C=1 V1= 220 V % voltage drop =%4 V2= 12 V J=2,2 A/mm2 B=1 Tesla n=%97 f=50 Hz Not: 1 Tesla =104 Gauss a 2 h b a 2 十一 a2 CP a Cp a2 a: Width of core (cm) b: width of core (cm) h: gap height (cm) h=3*as Cp: The gap width of the core (cm) (to be found based on the conductors to be placed) calculation of magnetic core: A= C.S. ^(1/2) and A= a b The transformer with the above characteristics: a) |The number of primary and secondary windings b) Primary and secondary currents c) Primary and secondary conductor cross-sections d) Find the primary and secondary conductor diameters. e) Dimensioning the core in cm (all dimensions in the figure)***
