Please complete all parts of question, and please show all steps clearly. will thumbs up if correct. thank you. A = 2,

[answerhappygod]

Please complete all parts of question, and please show all
steps clearly. will thumbs up if correct. thank you.
A = 2, B = 3, F = 2

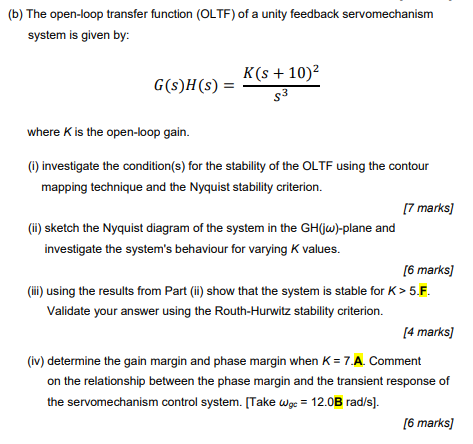

Please Complete All Parts Of Question And Please Show All Steps Clearly Will Thumbs Up If Correct Thank You A 2 1 (62.24 KiB) Viewed 39 times

(b) The open-loop transfer function (OLTF) of a unity feedback servomechanism system is given by: G(s)H(s) K(s + 10) s3 where K is the open-loop gain. 1) investigate the condition(s) for the stability of the OLTF using the contour mapping technique and the Nyquist stability criterion. [7 marks) (ii) sketch the Nyquist diagram of the system in the GH(jw)-plane and investigate the system's behaviour for varying Kvalues. [6 marks] (mi) using the results from Part (ii) show that the system is stable for K> 5.F. Validate your answer using the Routh-Hurwitz stability criterion. [4 marks) (iv) determine the gain margin and phase margin when K = 7.A. Comment on the relationship between the phase margin and the transient response of the servomechanism control system. (Take wge = 12.0B rad/s). [6 marks]
