Time left 1:31:42 D. TOYO D Q. O. Z X X BE Zo D a. CLK

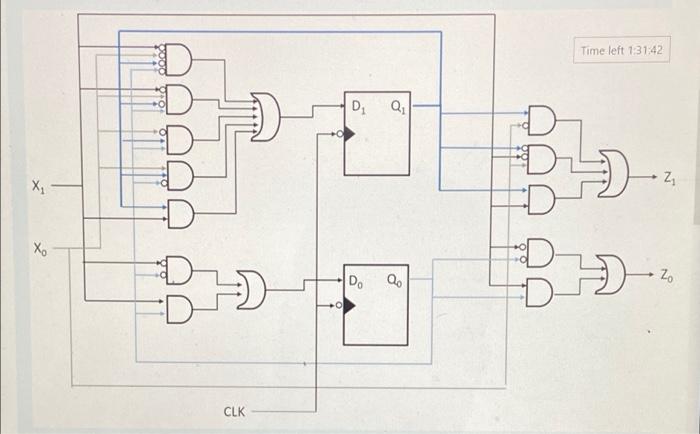

Figure 1a Q10 Derive and sketch a state transition table and a state diagram for the circuit in Figure 1a. (4 Marks)
