R(s) Problem 4 (30 points) For the system given below, where the input is unit step a) If T = 1, find the value of gain

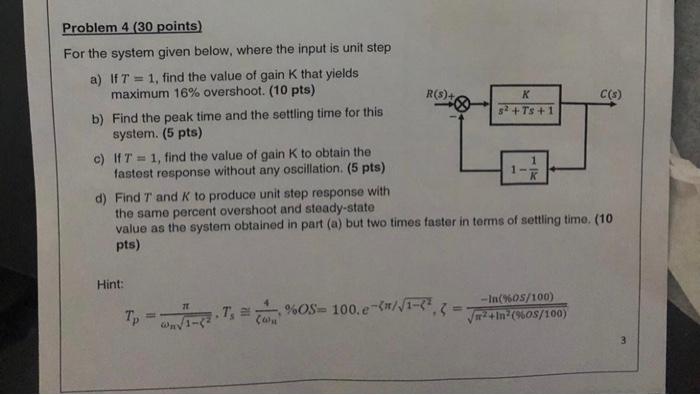

R(s) Problem 4 (30 points) For the system given below, where the input is unit step a) If T = 1, find the value of gain K that yields maximum 16% overshoot. (10 pts) K C(3) b) Find the peak time and the settling time for this 52 +Ts +1 system. (5 pts) c) If T = 1, find the value of gain K to obtain the fastest response without any oscillation. (5 pts) d) Find T and K to produce unit step response with the same percent overshoot and steady-state value as the system obtained in part (a) but two times faster in terms of settling timo. (10 pts) Hint: Tp To = -2.7 %0S-100.e-*//T=R",3 = OS -In(%0S/100) 24in (9608/100)
