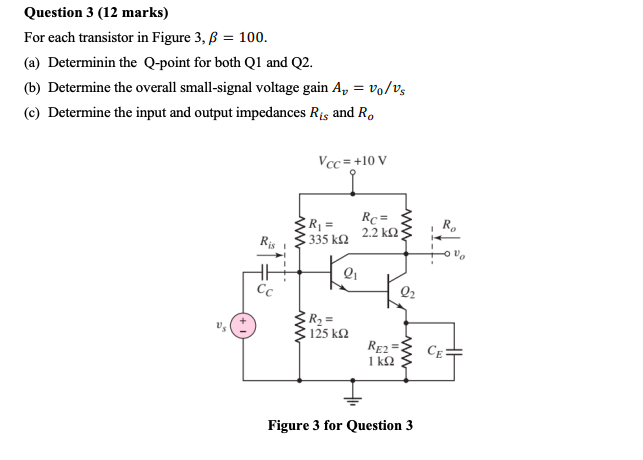

= Question 3 (12 marks) For each transistor in Figure 3, B = 100. (a) Determinin the Q-point for both Q1 and Q2. (b) Determine the overall small-signal voltage gain Ay = volvs (©) Determine the input and output impedances Ris and R, Vcc=+10 V www R = 335 ΚΩ RC= 2.2 k22 www R. HE Q Q CC 02 w ww R2 = 125 k92 RE2 CE 1 k22 Figure 3 for Question 3
