Build a 4-bit counter that can do the following. Your design can use any basic (2-input) gates (AND, OR, NAND, NOR, XOR)

[answerhappygod]

Build A 4 Bit Counter That Can Do The Following Your Design Can Use Any Basic 2 Input Gates And Or Nand Nor Xor 1 (82.2 KiB) Viewed 44 times

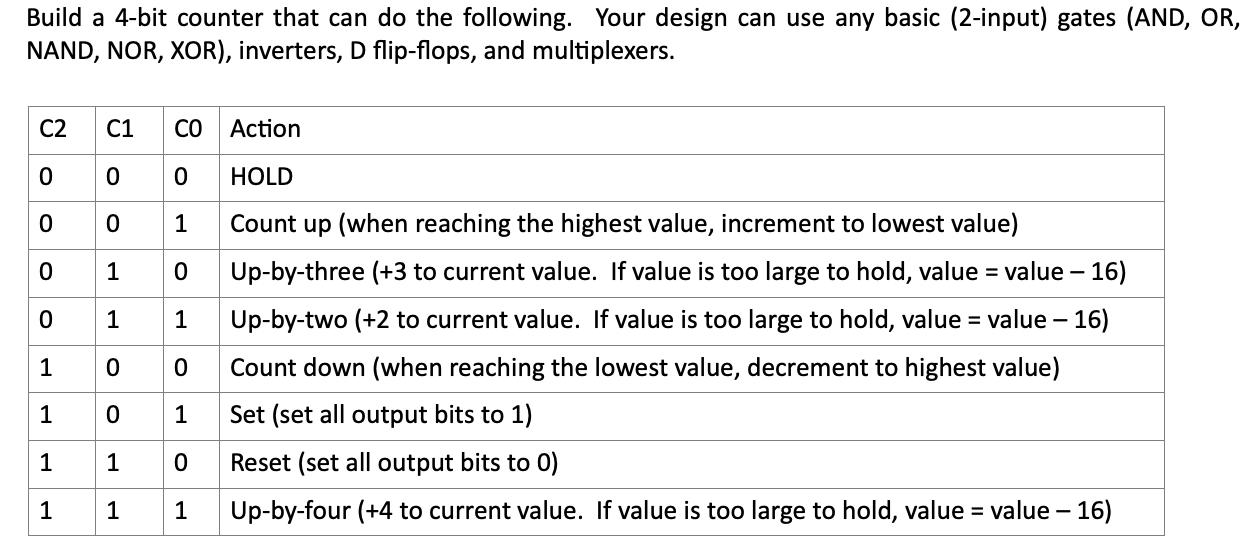

Build a 4-bit counter that can do the following. Your design can use any basic (2-input) gates (AND, OR, NAND, NOR, XOR), inverters, D flip-flops, and multiplexers. C2 C1 CO Action 0 0 HOLD 0 0 1 o 1 0 0 1 1 = 1 o 0 Count up (when reaching the highest value, increment to lowest value) Up-by-three (+3 to current value. If value is too large to hold, value = value – 16) Up-by-two (+2 to current value. If value is too large to hold, value = value - 16) Count down (when reaching the lowest value, decrement to highest value) Set (set all output bits to 1) Reset (set all output bits to 0) Up-by-four (+4 to current value. If value is too large to hold, value = value - 16) 1 0 1 1 1 0 1 1 1
