Example 3 A separately-excited DC generator is rated 5 KW and 125 V. The equivalent armature resistance is 0.222. Neglec

Post by answerhappygod »

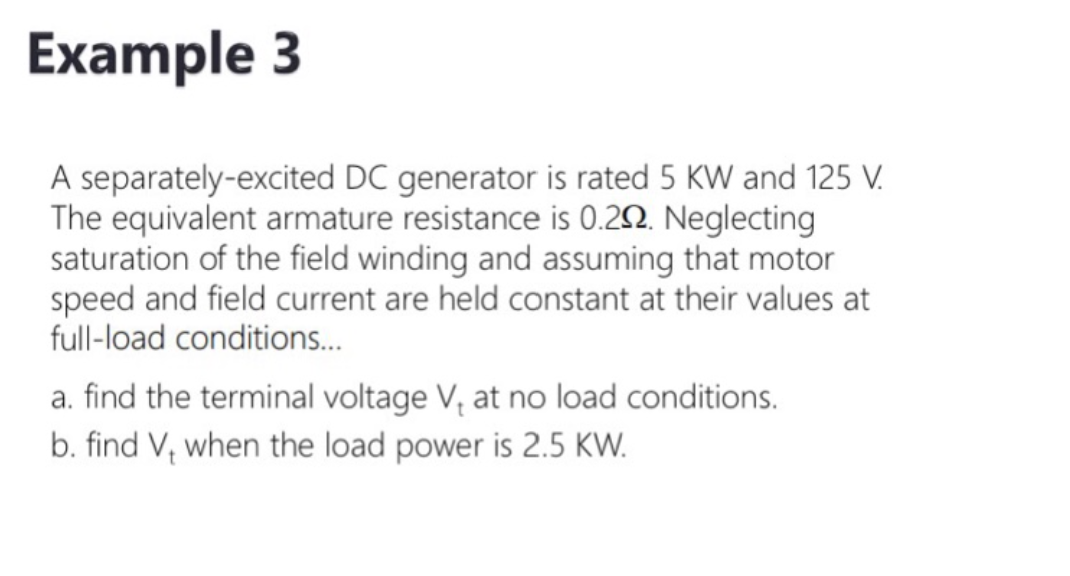

Example 3 A Separately Excited Dc Generator Is Rated 5 Kw And 125 V The Equivalent Armature Resistance Is 0 222 Neglec 1
Example 3 A Separately Excited Dc Generator Is Rated 5 Kw And 125 V The Equivalent Armature Resistance Is 0 222 Neglec 1 (224.95 KiB) Viewed 30 times
Example 3 A separately-excited DC generator is rated 5 KW and 125 V. The equivalent armature resistance is 0.222. Neglecting saturation of the field winding and assuming that motor speed and field current are held constant at their values at full-load conditions... a. find the terminal voltage V, at no load conditions. b. find V; when the load power is 2.5 KW.
