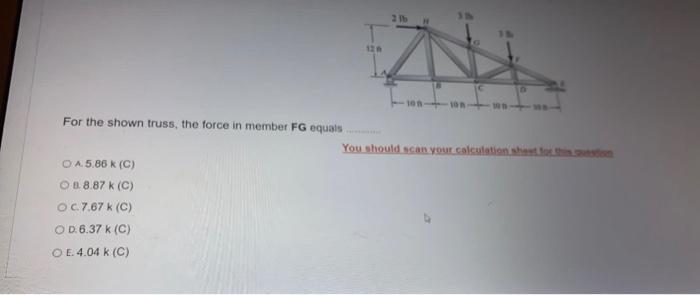

21b 100 For The Shown Truss The Force In Member Fg Equals You Should Scan Your Calculations O A 5 86 K C O 8 8 87 K 1 (14.03 KiB) Viewed 44 times
If the daigram is not clear: The above values are 3 each, the left side value is 12 and the below values are 10 each
21b 100 For the shown truss, the force in member FG equals You should scan your calculations O A 5.86 K (C) O 8.8.87 K (C) OC.7.67 k (C) OD.6.37 k (C) O E.4.04 k (C)
