A Sequential Circuit With Two D Flip Flops A And B Two Inputs X And Y And One Output Z Is Specified By The Following 1 (38.17 KiB) Viewed 20 times
Note: Please write your answer legibly. Thanks!

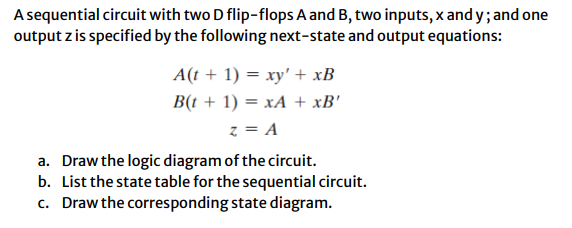

A sequential circuit with two D flip-flops A and B, two inputs, x and y; and one output z is specified by the following next-state and output equations: Alt + 1) = xy' + xB B(t + 1) = xA + xB' z = A a. Draw the logic diagram of the circuit. b. List the state table for the sequential circuit. C. Draw the corresponding state diagram.
