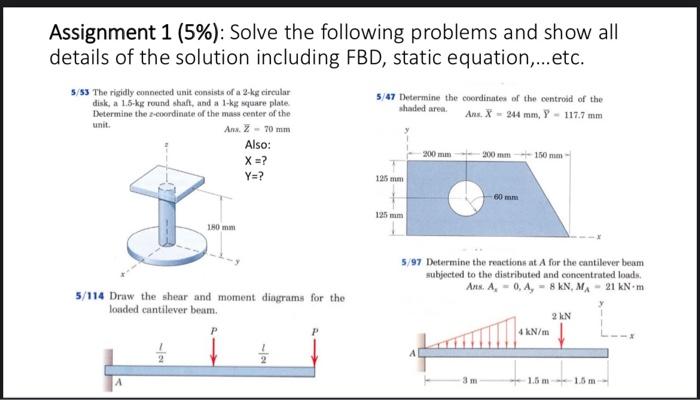

Assignment 1 (5%): Solve the following problems and show all details of the solution including FBD, static equation...etc. 5/47 Determine the coordinates of the centroid of the shaded are An X - 24 mm, 7 - 117.7 mm S/53 The rigidly connected unit consists of a 2-kg circular disk, a 1.5-kground shaft, and a 1-kg square plate Determine the coordinate of the mass center of the unit. Anx. 2 - 70 mm Also: X =? 200 mm 200 mm 150 mm YE? 125 mm 60 mm 10 mm 5/97 Determine the reactions at A for the cantilever beam subjected to the distributed and concentrated loads. Ans. A. - 0, A, - 8 kN, MA - 21 km 5/114 Draw the shear and moment diagrams for the loaded cantilever beam. 2 KN 4 kN/m 1 / 4 | 1 / 2 3 m 1.5 m 1.5 m
