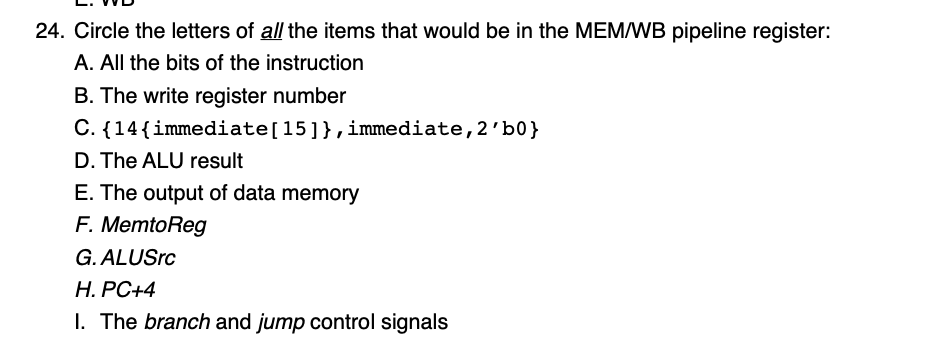

24. Circle the letters of all the items that would be in the MEM/WB pipeline register: A. All the bits of the instruction B. The write register number C. {14{immediate[15]}, immediate, 2'b0} D. The ALU result E. The output of data memory F. MemtoReg G. ALUSrc H. PC+4 1. The branch and jump control signals
